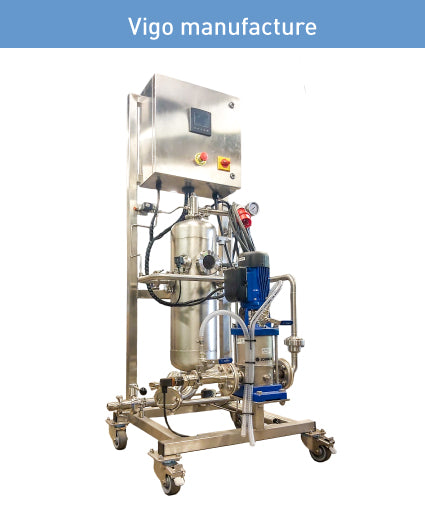

Vigo 1000 litre per hour in-line carbonator

Designed and built by us, this in line carbonator is suitable for the carbonation of cider, water, soft drinks, kombucha, kefir, RTD’s and other drinks.

  • In-line carbonation
  • Full automatic carbonation process
  • 1000 litres per hour
  • PLC touchscreen
  • Fitted with a CIP (clean-in-place) system
  • All contact parts stainless steel
  • See Application for operation

NB product must be chilled to between 2 & 4 degrees C. We supply chilling equipment.

Manufactured, installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your carbonation & chilling requirements.

We've supplied mutliple in-line carbonators over the years - please ask us about our customer case studies.


Please see the Carbonators category in Catalogue for our full range of carbonators; please see Temperature Control & Chilling for our range of chillers.



The product is drawn from the chilled holding tank by a high pressure pump, carbonated (process fully automatic), and allowed to stabilise in the settling tank from which it is fed to the filling machine.


  • Construction in AISI 304 & 316 stainless steel
  • Stainless steel stabilisation tank
  • High-pressure pump
  • A regulator and snift valves to maintain the required level of pressure
  • Pneumatic and manual closing valves
  • Injector
  • Pump for product transfer to bottle filling machine
  • PLC controlled system with HMI (Human Interface Unit)
  • All contact parts stainless steel, with the exception of seals made from food-grade material
  • Carbonator mounted on a stainless steel frame with feet



  • Capacity: 1000 litres per hour
  • Required temperature of product: 2-4°C
  • Electrical requirement: 415 V, 3 kW
  • Compressed air requirement: 10 bar
