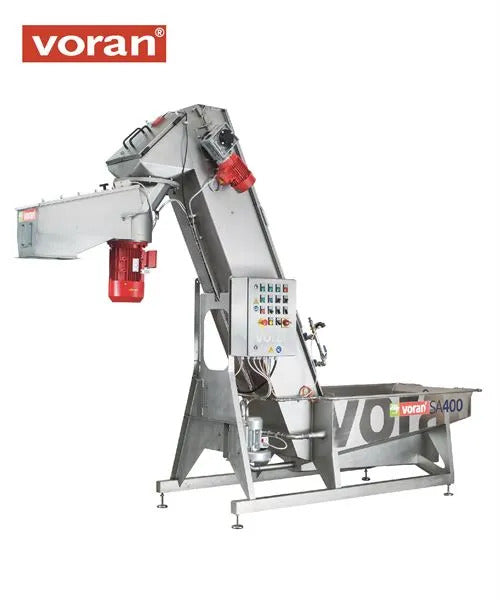

Voran SA400 wash mill & elevator

SA washmills and elevators are manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925. When used with the appropriate belt press, they wash fruit and deliver it milled directly to the belt press, automating the milling and pressing process. The SA400 has the following features:

  • Capacity of up to 8000 kg per hour
  • Suitable for milling apples and pears (some other fruits and vegetables can be processed - please contact us to discuss)
  • Sorting table and water bath
  • Fruit elevated by flighted conveyor belt, receiving a spray of water during elevation
  • Mounted on wheels for ease of movement
  • Stainless steel construction throughout
  • 3 phase
  • Suitable for use with the Voran 650 / 1200 and ZBP 660 & 1100 Belt Presses.

Installed & commissioned by our Engineers.

See the 'Voran' tab below for customer Case Studies.

Please call us on 01404 892100 to discuss your milling requirements.



Please see the Mills - Apple category for our full range of apple mills.

Please see the Presses - Apple category for our range of apple presses.

Please see the Reception & Sorting - Apples category for our range of Bin Tippers and Apple Cleaning & Sorting Tables.

For accessories, please see our PPE & Tools categories in Catalogue.

Application

  • Different graters (perforated screens) are available depending on the degree of milling required
  • Suitable for use with the Voran EBP650/1200, and ZBP belt presses



Features

  • Fruit is fed into a washing bath and is elevated into the mill, receiving a spray of water while being elevated
  • The fruit is pulverised by a heavy rotor and pulp is discharged through a perforated screen - for different types of fruit, screens can be changed for versions with different sized perforations to optimise the consistency of the pulp for pressing, which can allow you to get optimum juice yields.
  • The supply of apples to the mill is automatically regulated by a pressure sensor either on the pomace hopper of the mill or at the press inlet

Voran are the market leaders in fruit juice processing equipment. The Voran range of wash mills/elevators from Vigo offer you the following features:

  • Robust and heavy duty mills
  • Continuous, automatic operation where operated with a belt press
  • Minimal supervision required - reducing labour costs
  • Full stainless steel construction
  • Simple operation and cleaning
  • Set-up, commissioning and training carried out by experienced Vigo engineers



Specification

  • Model: SA400
  • Mill type: RM7.5
  • Capacity: Up to 8000 kg per hour
  • Fruit feed/water bath height: 730mm
  • Width of conveyor: 400mm
  • Height of mash outlet: 1560mm
  • Fresh water connection: 1/2"F
  • Water bath connection: DIN50/75
  • Cleaning connection: 1/2"M
  • Motor: Elevator 0.55kW / Mill 7.5 kW
  • Total connection output in kW: 11.1kW
  • Voltage: 400 V
  • Hertz: 50Hz
  • Construction: Stainless steel AISI 304
  • Dimensions: Width 980 x Depth 3570 x Height 2570 mm
  • Weight: 510 kg



YouTube

Showing the SA wash mill & elevator in line with the GKE bin tipper, the BRM cleaning & sorting table, and the EBP580 belt press:

Voran

Established in 1925, Voran is the market leader in commercial fruit processing equipment.

We have been supplying Voran equipment since 1987. Here are the reasons why we choose Voran for their presses, mills and reception equipment:

  • Their extensive specialist experience in apple processing (coming up to 100 years)
  • Voran's presses are designed to achieve excellent juice yields from fresh and stored fruit (up to 80%, depending on model, fruit variety and fruit quality) for optimised raw juice quality (freshness, flavour, aroma & structure) and low juice turbidity
  • Their equipment is of high build quality and extremely robust - there are many Voran presses in the UK over 20 years old which are still giving good service today
  • Their presses and mills are designed for fast juice collection for minimal oxidation
  • Their range is modular and process-based
  • They manufacture in-house at their site in Austria and so are in full control of the manufacturing process
  • Their manufacturing processes are optimised to produce high quality equipment through stringent quality assurance
  • They operate via ISO 9001 quality assurance standards and are TÜV AUSTRIA certified
  • Their commitment to product development in response to the needs of juice producers and market trends has been demonstrated year on year
  • Voran’s original vision was to trade with integrity and to engender trust - these core values have remained fundamental to the success of the company

The Voran Range

The Voran range covers all scales of production and includes the equipment below:



Voran Video

Watch the Voran video here.

Blog

Read our Vigo, Voran & varients of press blog.

What we offer...

We can offer you:

  • Advice on the appropriate equipment for you – taking budget, space, desired throughput, labour, etc. into consideration
  • Competitive prices
  • Advice on integrating new equipment into existing schemes
  • Trade-in options for your used (Voran) equipment
  • Advice on layout of equipment, power/water requirements in your building, etc.
  • Equipment thoroughly tested prior to dispatch by our experienced team of Vigo engineers
  • Conversion to single-phase power where required
  • Vigo engineers install & commission on site and provide training to you and your staff where necessary
  • Comprehensive 2 year parts and labour warranty on Voran presses, backed up by Vigo engineers
  • Maintenance & full technical backup and support from our mobile engineers
  • Good stock of spare parts

Case Studies

The Case Studies below represent a small sample of the hundreds of presses we have supplied over the years [NB: More case studies are listed in the Cider & Juice category of Case Studies]:

How can we help you?

If you're looking to upgrade your fruit processing system, or start from scratch, please call us on 01404 892100 and we will be happy to discuss your requirements.
