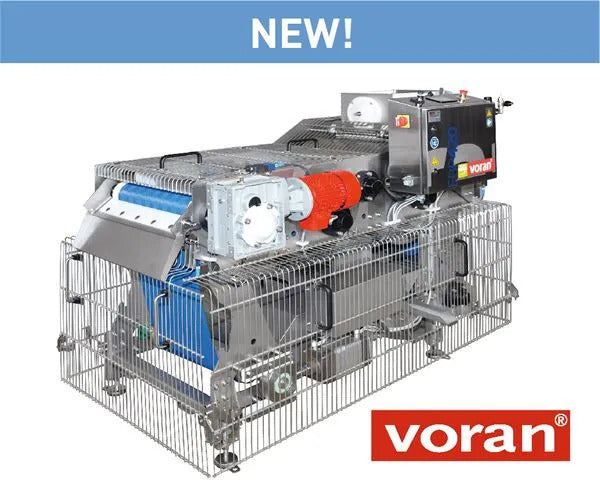

Voran EBP420 belt press

The EBP420 belt press is the latest model of belt press manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925.

Automatic belt presses offer a way of pressing high volumes of fruit pulp with minimal labour costs. When used with a Voran wash mill and elevator (available separately - see below), the belt press offer continuous, automatic pressing and milling of apples. Belt presses are typically used to press milled apples, but press some other fruits and vegetables - see Application for list.

Pulp (e.g., apple pulp from milled apples) is fed continuously onto the porous belt of the belt press and pressed against a series of steel rollers, which extract the juice. Yields are comparable and, in some cases, higher than those achieved by hydraulic presses. Using a belt press gives a short pressing time and leads to minimal air contact. The quality of the juice is usually very high as a result, with minimal solid content.

  • Presses up to 600 kg of apple pulp per hour
  • Up to 70% juice yield, depending on fruit quality and variety
  • Compact design
  • 3 phase
  • Use with the Voran SA wash mill with elevator
  • Comprehensive 2 year warranty, backed up by Vigo engineers

Please contact us on 01404 892100 to discuss your pressing requirements.


Suitable for

  • Pome fruits (apples, pears & quince)

Other fruits/vegetable which Voran confirm can be used:*

  • Beetroot
  • Carrots
  • Manioc

Fruit should be prepared for pressing as follows:

  • Apples and pears must be milled

(*) For advise on fruit preparation of the other fruits/vegetables listed above, please ask us to confirm this.


The Voran range of automatic belt presses from Vigo offer you the following features:

  • Continuous, automatic operation where operated with a Voran wash mill & elevator
  • Pulp is fed continuously onto a porous belt and pressed against a series of steel rollers, which extracts the juice
  • Minimal labour and supervision required, reducing production costs
  • High juice yields - see main description
  • Short pressing time and minimal air contact to reduce oxidation of juice
  • Flexibility to press small batches of fruit – useful if pressing single varieties or contract pressing for smaller customers
  • Full stainless steel construction
  • Automatic belt cleaner by pressure washer to optimise yield and efficiency
  • Pneumatic belt tensioners
  • Level controls available to automatically regulate pumping of juice to holding tanks
  • Simple operation and cleaning
  • Optional rotary belt cleaning brush to reduce water consumption
  • Set-up, commissioning and training carried out by experienced Vigo engineers
  • Comprehensive 2 year warranty, backed up by Vigo engineers


  • Model: EBP420
  • Capacity: Up to 600 kg per hour
  • Juice yield: Up to 70%, depending on fruit variety and quality
  • Belt width: 420mm
  • Belt speed controller via inverter
  • Belt speed: 2.1 - 5.5 (continuous) m/min
  • Height of pomace ejector: 780mm
  • Height of juice outlet: 305mm
  • Discharge height: 1290mm
  • Water consumption for cleaning: 12 l/min
  • Motor: 0.75 kW
  • Voltage: 400 V
  • Construction: AISI 304 stainless steel
  • Dimensions: Width 1090 x Depth 1820 x Height 1290 mm
  • Weight: 600 kg
  • Compatible wash mill and elevator: SA200


Voran is the market leader in commercial fruit processing equipment. The Voran range is modular, process-based and extremely robust. Their manufacturing processes are optimised to produce high quality equipment through stringent quality assurance. They operate via ISO 9001 quality assurance standards and are TÜV AUSTRIA certified. Established in 1925 in Austria, Voran’s vision was to trade with integrity and to engender trust and since then these core values have remained fundamental to the success of the company. Since we began supplying Voran equipment in 1987, their commitment to product development in response to the needs of juice producers and market trends has been demonstrated year on year.

Here are some more reasons why we choose Voran for their presses, mills and reception equipment:

  • Their extensive specialist experience in apple processing (coming up to 100 years)
  • Voran's presses are designed to achieve excellent juice yields from fresh and stored fruit (up to 80%, depending on model, fruit variety and fruit quality) for optimised raw juice quality (freshness, flavour, aroma & structure) and low juice turbidity
  • Their equipment is of high build quality and extremely robust - there are many Voran presses in the UK over 20 years old which are still giving good service today
  • Their presses and mills are designed for fast juice collection for minimal oxidation
  • They manufacture in-house at their site in Austria and so are in full control of the manufacturing process

We offer the full range of Voran fruit processing equipment. We can offer you:

  • Advice on the appropriate equipment for you – taking budget, space, desired throughput, labour, etc. into consideration
  • Advice on integrating new equipment into existing schemes
  • Trade-in options for your used (Voran) equipment
  • Advice on layout of equipment, power/water requirements in your building, etc.
  • Equipment thoroughly tested prior to dispatch by experienced team of Vigo engineers
  • Conversion to single-phase power where required
  • Vigo engineers install & commission on site and provide training to you and your staff where necessary
  • Comprehensive 2 year parts and labour warranty on Voran presses, backed up by Vigo engineers
  • Good stock of spare parts

All of this ensures you choose the right equipment for your application, which fits seamlessly into your operation. Our engineers ensure that the equipment works perfectly for you immediately, allowing you to quickly and efficiently increase production, reduce costs and increase your profitability.

The range

To view our full range of Voran equipment enter ‘Voran’ in the spy glass icon (header bar). If you're looking for a specific Voran machine but cannot find it on our website, please contact us on 01404 892100 or email us at sales@vigoltd.com.
