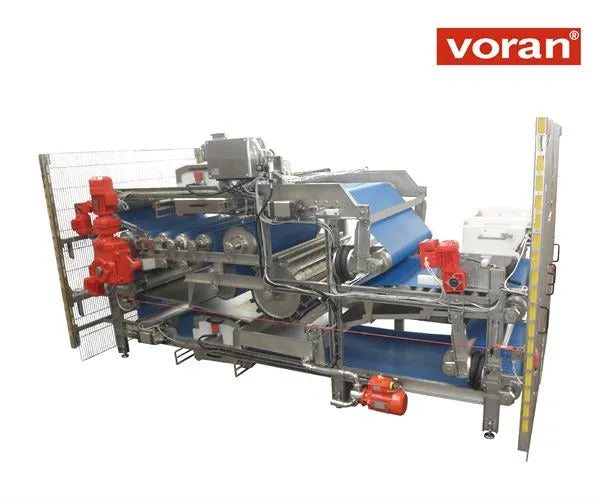

Voran ZBP1100 Twin belt press

The ZBP1100 twin belt press is manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925.

Automatic belt presses offer a way of pressing high volumes of fruit pulp with minimal labour costs. When used with a Voran wash mill and elevator (available separately - see below), the belt press offer continuous, automatic pressing and milling of apples. Belt presses are typically used to press milled apples, but press some other fruits and vegetables - see Application for list.

Pulp (e.g., apple pulp from milled apples) is fed continuously onto the porous belt of the belt press and pressed against a series of steel rollers, which extract the juice. Yields are comparable and, in some cases, higher than those achieved by hydraulic presses. Using a belt press gives a short pressing time and leads to minimal air contact. The quality of the juice is usually very high as a result, with minimal solid content.

Presses up to 7,000 kg of apple pulp per hour - watch the video below in the YouTube tab
Twin belt system gives juice yields of up to 80%, depending on fruit variety and quality
Use with the Voran WAR65 Wash Mill with Elevator
Comprehensive 2 year warranty, backed up by Vigo engineers

Installed & commissioned by our Engineers.

A Voran Juice Collection Tank with 2 tanks and a rating of 3,600 litres/hr is available for this press - please discuss this with us.

See the 'Voran' tab below for customer Case Studies.

Please call us on 01404 892100 to discuss your pressing requirements.

Please see the Mills - Apple category for our full range of apple mills.

Please see the Presses - Apple category for our range of apple presses.

For accessories, please see our PPE & Tools categories in Catalogue.

Application

Suitable for

Pome fruits (apples, pears & quince)
Blueberries

Other fruits/vegetable which Voran confirm can be used:*

Beetroot
Carrots
Manioc

Fruit should be prepared for pressing as follows:

Apples and pears must be milled

For advise on fruit preparation of the other fruits/vegetables listed above, please ask us to confirm this.

Features

The Voran range of automatic belt presses from Vigo offer you the following features:

Continuous, automatic operation where operated with a Voran wash mill & elevator
Pulp is fed continuously onto a porous belt and pressed against a series of steel rollers, which extracts the juice
Minimal labour and supervision required, reducing production costs
High juice yields - see main description
Short pressing time and minimal air contact to reduce oxidation of juice
Flexibility to press small batches of fruit â€“ useful if pressing single varieties or contract pressing for smaller customers
Full stainless steel construction
Automatic belt cleaner by pressure washer to optimise yield and efficiency
Pneumatic belt tensioners
Level controls available to automatically regulate pumping of juice to holding tanks
Simple operation and cleaning
Set-up, commissioning and training carried out by experienced Vigo engineers
Comprehensive 2 year warranty, backed up by Vigo engineers

Specification

Model: ZBP1100 twin belt for higher yield
Capacity: Up to 7000 kg per hour
Juice yield: up to 80% due to twin belt, depending on fruit variety and quality
Belt width: 1100mm
Strip length: 14500 / 10900mm
Conveyor width: 320-870mm
Belt speed controller via inverter
Belt speed: 1.2 - 4.5 m/min
Contact time: 1.5 - 6mm
Belt spread height regulation
Rotary belt cleaning brush as standard - reduces water consumption
Water consumption for cleaning: 20 l/min
Height of pomace ejector: 800mm
Height of juice outlet: 200mm
Discharge height: 1430mm
Height of waste water drain: 100mm
Conveyor height: 10 - 50mm
Conveyor width: 320 - 870mm
Connection for juice outlet: DIN40
Connection for waste water drain: 75mm Ã˜
Motor: 4.2 kW
Voltage: 400 V
Power: 3 phase
Construction: AISI 304 stainless steel
Dimensions: Width 2250 x Depth 4400 x Height 2200 mm
Weight: 3400 kg
Compatible wash mill & elevator: SA400 or WAR65

YouTube

jVideo also shows the Voran Bin Tipper and Voran SA 400 wash mill and elevator

Voran

Established in 1925, Voran is the market leader in commercial fruit processing equipment.

We have been supplying Voran equipment since 1987. Here are the reasons why we choose Voran for their presses, mills and reception equipment:

Their extensive specialist experience in apple processing (coming up to 100 years)
Voran's presses are designed to achieve excellent juice yields from fresh and stored fruit (up to 80%, depending on model, fruit variety and fruit quality) for optimised raw juice quality (freshness, flavour, aroma & structure) and low juice turbidity
Their equipment is of high build quality and extremely robust - there are many Voran presses in the UK over 20 years old which are still giving good service today
Their presses and mills are designed for fast juice collection for minimal oxidation
Their range is modular and process-based
They manufacture in-house at their site in Austria and so are in full control of the manufacturing process
Their manufacturing processes are optimised to produce high quality equipment through stringent quality assurance
They operate via ISO 9001 quality assurance standards and are TÜV AUSTRIA certified
Their commitment to product development in response to the needs of juice producers and market trends has been demonstrated year on year
Voran’s original vision was to trade with integrity and to engender trust - these core values have remained fundamental to the success of the company

The Voran Range

The Voran range covers all scales of production and includes the equipment below:

Mills for apples & a universal shredder for vegetables and other specific foodstuffs
Presses for pomme fruits (apples, pears & quinces); some other fruits and vegetables can be used depending on the model of press
Bin Tippers & an apple Cleaning & Sorting Table
Destoning machines for stoned fruits

Voran Video

Watch the Voran video here.

Blog

Read our Vigo, Voran & varients of press blog.

What we offer...

We can offer you:

Advice on the appropriate equipment for you – taking budget, space, desired throughput, labour, etc. into consideration
Competitive prices
Advice on integrating new equipment into existing schemes
Trade-in options for your used (Voran) equipment
Advice on layout of equipment, power/water requirements in your building, etc.
Equipment thoroughly tested prior to dispatch by our experienced team of Vigo engineers
Conversion to single-phase power where required
Vigo engineers install & commission on site and provide training to you and your staff where necessary
Comprehensive 2 year parts and labour warranty on Voran presses, backed up by Vigo engineers
Maintenance & full technical backup and support from our mobile engineers
Good stock of spare parts

Case Studies

The Case Studies below represent a small sample of the hundreds of presses we have supplied over the years [NB: More case studies are listed in the Cider & Juice category of Case Studies]:

Chalkdown Cider- cider system
Elgin's Orchard - apple juice production system
Harrow Wood Farm- cider system
Sheppy's Cider- pressing, bottling line & tanks
Tutts Clump Cider - pressing & BIB filling
Heron Valley- pressing & capping
Cornish Orchards - cider system & bottling line

How can we help you?

If you're looking to upgrade your fruit processing system, or start from scratch, please call us on 01404 892100 and we will be happy to discuss your requirements.
