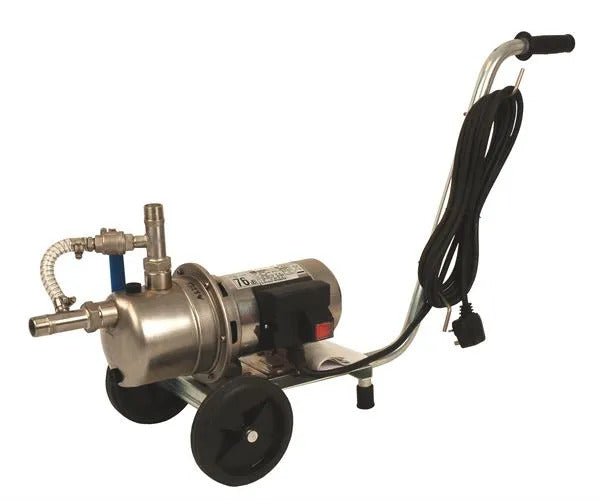

JESM5 centrifugal pump with bypass

RefNameStockPriceQty
93258JESM5 centrifugal pump with bypass

Live Stock Unavailable

In stock

Back Order

£399.50 ex. VAT

Centrifugal pumps are ideal for the transfer of clean liquids. The Ebara JESM5 is an economical centrifugal pump which is ideal for use with filters or fillers where a gentle flow is required.

  • Stainless steel body
  • Fitted to a steel trolley (with cable-wind facility) for ease of use and manoeuvrability
  • Bypass allows a flow of product back through the pump head, especially useful when using the pump with a gravity filler (see Fillers link below) where the inlet may close if the filler is not being used

NB This pump is not suitable for pumping products over 7% ABV; this pump is not suitable for pumping Peracetic Acid.

Ideal for use with the Pump Trolley (part no 93302), available separately. Can be used with our Remote Control System - (part codes 93303 & 93304) - available separately.

If you need advise on whether this pump is suitable for your application, please call uson 01404 892 100.



NB You can order impellers & a seal kit online for this pump - please see the Spares category in Catalogue and Refine by 'Type'.

Please see the Pumps category in Catalogue for our full range of Pumps.

For hoses, please see our Hoses category. For hosetails and other fittings, please see our Fittings category. Please also see our Fillers & Filters categories.

Application

Please note:

  • This pump is not suitable for pumping products over 7% ABV
  • This pump is not suitable for pumping Peracetic Acid



Specification

  • Model: JES M5
  • Flow rate: 2400 litres per hour @ 0 bar
  • Max pressure: 3.5 bar
  • Max product temperature: 35 degrees C
  • Impeller: Plastic
  • Thread size (in & out) / hose connections: ¾" BSP M in & out
  • Motor: 0.37 kW
  • Weight: 10 kg
