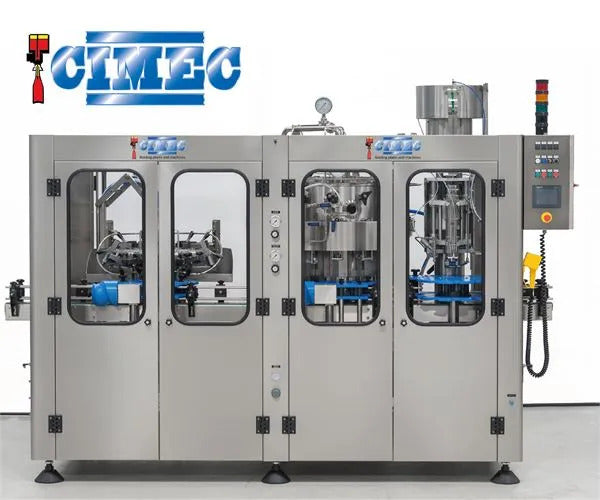

CIMEC automatic bottle filling lines

We have a long standing parnership with Cimec, who produce machines suitable for filling with a variety of products. Cimec has a reputation for producing high quality, long lasting machines which will work hard for many years, suitable for both still and sparkling products, including wine, cider, fruit juices, soft drinks, health drinks, beer, water, liqueurs, spirits and vinegar. These machines can be linked in-line to carbonators, flash pasteurisers and labelling machines. Cimec has supplied machines to many well known breweries, such as Grolsch, and Inbev/Interbrew. Click on the CIMEC tab below for more information about Cimec.

We have supplied Cimec machines to many cider/juice producers and breweries. Click on the CIMEC tab below for a few examples. We offer:

  • A complete service which can include line layout configuration, associated conveyoring and ancillary equipment including depalletisers, labellers, flash pasteurisers, carbonators, etc.
  • CIMEC automatic bottling systems which range from 1,000 to 15,000 bottles per hour
  • A complete service which includes supply, installation & commissioning by the Vigo Engineering team
  • Maintenance, servicing & repairs
  • Full back-up from the Vigo Engineering team

Installed & commissionined by our Engineers.

Please call us on 01404 892100 to discuss these machines.

See the 'CIMEC' tab (below) for customer Case Studies.



Use with the appropriate Closures from our range.

Please see the Fillers category in Catalogue for our full range of filling machines.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]



Application

CIMEC's Gravity Systems:

CIMEC’s ​​gravity, light vacuum and high vacuum fillers are built according to the most advanced technologies, they can fill still products with gravity or light vacuum, having a wide range of filling valves to suit the characteristics of the product.

There are many advantages to filling using light vacuum, better priming and absence of dripping. An optional system allows these valves to prevent air from entering the tank preserving the product’s integrity against oxidation and microbiological pollution.

A high vacuum system is applied for very dense products which exploits the difference in pressure between the filler tank and the bottle.

CIMEC's Counter Pressure / Isobaric Systems:

CIMEC's range of isobaric fillers are produced using the most advanced technologies, guaranteeing reliability and precision for the user.

Both carbonated and still products can be processed withisobaric fillers with a wide choice of CIMEC designed & manufactured filling valves (including DPS, PSL, PS, SL, IS-pet & S valves) to be used according to the characteristics of the product to be bottled.

NEW! CIMEC's Electro-Pneumatic System:

CIMEC's latest innovation includes a new electro-pneumatic filler, where the focus of the project was on the filling valve. The various phases are timed by the operator creating various programs. This guarantees the best result in terms of performance and the safety of repeatability of the values ​​obtained for each individual valve, even when the speed varies, during the entire bottling cycle.

CIMEC's Electro Pnuematic System is capable of handling both carbonated and still products. It is also able to separate the partially oxidized gas remaining in the bottle from the product in the tank, bringing it into an external chamber, so as to ensure zero oxygen increase in the liquid to be bottled preserving its characteristics over time.

CIMEC's Volumetric Systems:

The main characteristic of these machines is the dosage of the product inside the container which can occur via a syringe device, or the filling system can be of electronic type to inductive flow meters for volumetric bulk filling for low conductivity products. This filling technology is able to guarantee the perfect amount of liquid inside the container used. Mainly this system is used with high density products such as sauces and oils, or very foamy such as liquid detergents or similar.

Features

Automatic bottling lines can allow you to vastly increase production and decrease labour costs. We have extensive experience in supply, installation, commissioning and maintenance of filling lines, which can include bottle depalletising, rinsing, filling, capping, pasteurisation, labelling and packing. We can supply and install all conveyoring, to suit the layout you need. We can also specify all of the required controls to ensure your line works safely and efficiently.

CIMEC systems are renouned for quality, longevity, reliability & precision filling and are manufactured to the most advanced technologies.

CIMEC's monoblocs incorprate rinsing, filling and capping/corking functions and are designed to make bottling easy for the user, as they are manufactured to the specific production requirements of each individual customer. CIMEC pride themselves on not standardising production, but rather to specialisting and building custom-made systems specifically for the characteristics of the product/s. In this integrated system the operating logic remains simple and intuitive thanks to new technologies that allow to reduce the space otherwise occupied by the various individual machines with very high operating costs.

  • Range suitable for still or sparkling products, including wine, cider, fruit juice, soft drinks, health drinks, beer (both carbonated and bottle conditioned), water, liqueurs, spirits & vinegar
  • Wide variety of CIMEC & manufactured filling valves to suit the specific characteristics of the product; valves include DPS, PSL, PS, SL, IS-pet & S valves
  • CIMEC's monoblocs are are available with the following functions:
    • Bottle Rinsing
    • Filling methods available:
      • Gravity, low pressure, low vacuum, high vacuum & volumetric
      • Counter pressure filler / isobaric
    • Corking and capping - corks, ROPP caps, crown caps, plastic screw caps. Machines can have more than one capping turret to suit different cap types
  • Bottles can be pre-evacuated to remove oxygen & inject gas prior to filling
  • Optional extras include:
    • CIP & accessories
    • Steam clean option
    • Burst bottle rinse procedure/system
    • Remote access system
  • Machines can be run with in-line carbonators, flash pasteurisers & labelling machines
  • Installation, commissioning , training and warranty by our experienced Vigo engineers
  • 3 year parts warranty and 2 year labour warranty on Cimec machines purchased through us



YouTube






CIMEC

CIMEC have over 35 years of experience designing and manufacturing automatic filling machines and have supplied machines to reowned producers such as Grolsch and Inbev/Interbrew.

Here are some of the reasons why we choose CIMEC for automatic bottling & canning equipment:

  • Their reputation for producing high quality, reliable, long-lasting robust machines for sparkling or still products
  • Their 35+ years of design & manufacturing experience - they have sold hundreds of bottling plants and machines all over the world
  • They manufacture in-house (entirely at their site in Northern Italy) and can guarantee spare parts in a short time
  • They carry out R&D and they regularly update their design and production technologies in order to respond to the requirements of the drinks industry
  • They are a family-owned, multi-generational company that share the same vision and values - run by Ignazio Cacciatore (founder) and his sons Gianluca & Devis
  • They are ISO 9001 certified to sustain customer satisfaction via product quality, for optimised processes, meeting management responsibilities and striving for continuous improvement

The Range

The CIMEC range includes CIMEC Automatic Bottle Filling Lines, CIMEC Automatic Bottle Rinsers/Sterilisers & CIMEC Rotary Canning Lines

What we offer...

We have supplied, installed and commissioned CIMEC filling machines for still and sparkling products since 2004, and for their bottling machines we offer a 3 year parts warranty and 2 year labour warranty.

CIMEC machines are regularly incorporated into bottling lines designed and supplied by our engineers, to include depalletising, labelling and packing, with all conveyoring; the canning lines can also be incorporated inline with ancillary equipment

We can offer you:

  • Advice on the appropriate line for you - taking budget, space and desired throughput, and labour, etc., into consideration
  • Available bottling functions including the following: bottling rinsing; filling (including counter pressure filling for carbonated products - bottles can be double pre-evacuated to remove oxygen); and capping (crown caps, ROPP caps, corks - machines can have more than one capping turret to suit different cap types)
  • Available canning functions including: filling via counter pressure fill & seaming
  • Recommendation on bottling/canning line layout and drawings
  • We can include bottle/can depalletising and labelling, as required
  • Advice on power / water / compressed air requirements in your building
  • Supply, installation and commissioning by our team of experienced, multi-skilled Vigo engineers
  • Supply and installation of all conveyoring and all the required controls to ensure your line works safely and efficiently
  • 3 year parts warranty and 2 year labour warranty on CIMEC bottling lines, backed up by Vigo engineers
  • Maintenance and full technical backup from our mobile engineers
  • Good stock of spare parts



Case Studies

The Case Studies below represent a small sample of the automatic bottle filling lines we have supplied:

How can we help you?

If you're looking to source an automatic bottling line please call us on 01404 892100 and we will be happy to discuss your requirements.
