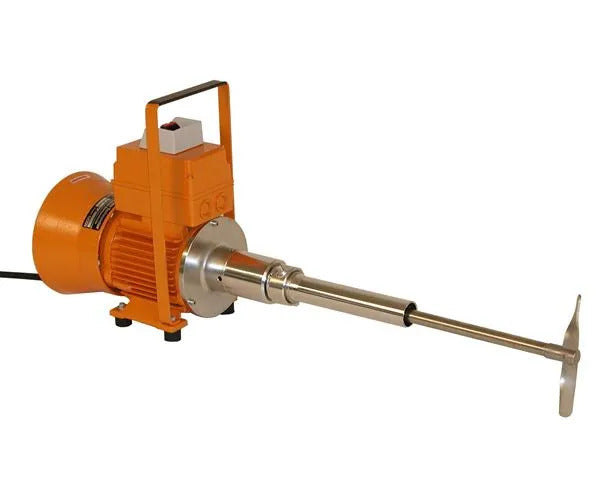

• TS-VA/1  3 phase stirrer/rouser

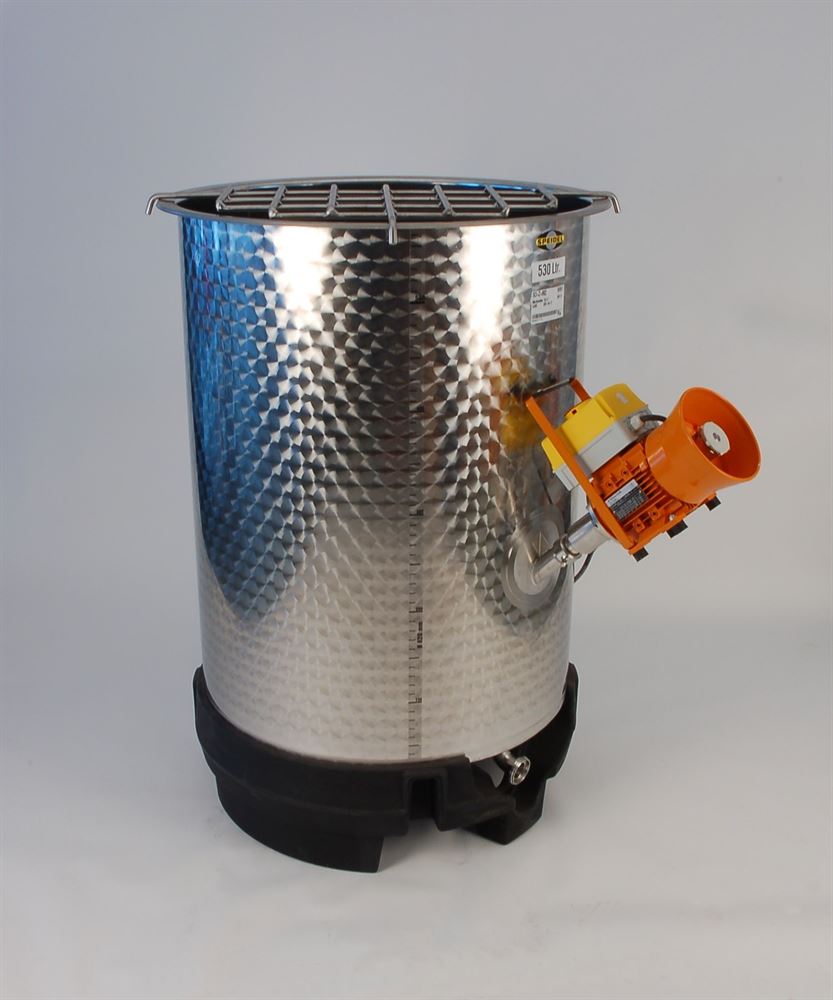

  • Shown in situ in a Speidel mixing tank (available separately)

Schneider TS-VA stirrers

RefNameStockPriceQty
99140TS-VA/1 3 phase stirrer/rouser

Live Stock Unavailable

In stock

Back Order

£885.00 ex. VAT

99144TS-VA/2 3 phase stirrer/rouser

Live Stock Unavailable

In stock

Back Order

£2710.00 ex. VAT

The TSVA stirrers (rousers) are used to stir the contents of stainless steel tanks fitted with the appropriate port & valve (see below). They are manufactured by Schneider Pumpen, who have over 70 years' experience manufacturing pumps.

  • Portable stirrers
  • 2 models available with different mixing capacities (see Specification)
  • For use with stainless steel flap valves with a male GR37 thread - see Flap Valve GR37 (part code 77400)
  • Fitted with a retractable propeller shaft that can be pulled back through the motor, reducing loss of liquid when the rouser is fitted to the flap valve
  • Quiet and vibration-free operation
  • Stainless steel contact and structural parts
  • Motor supplied with overload protection and 10 metre cable with plug

NB The following tanks are typically supplied with a racking/stirring port and GR37 Flap Valve: Speidel FO Variable Capacity Tanks (excluding FO1 & FO2), & Speidel Stainless Steel fixed capacity Tanks (FS-MO, etc.) - see the Tanks catogory in Catalogue - please call us on 01404 892 100 if you are unsure whether your tank & valve will be suitable





Specification

TS-VA/1 3 phase stirrer/rouser

  • Mixing Capacity: 30,000 litres
  • Motor: 0.75 kW
  • Voltage: 400 V
  • Weight: 13 kg

TS-VA/2 3 phase stirrer/rouser

  • Mixing Capacity: 50,000 litres
  • Motor: 1.1 kW
  • Voltage: 400 V
  • Weight: 16 kg
