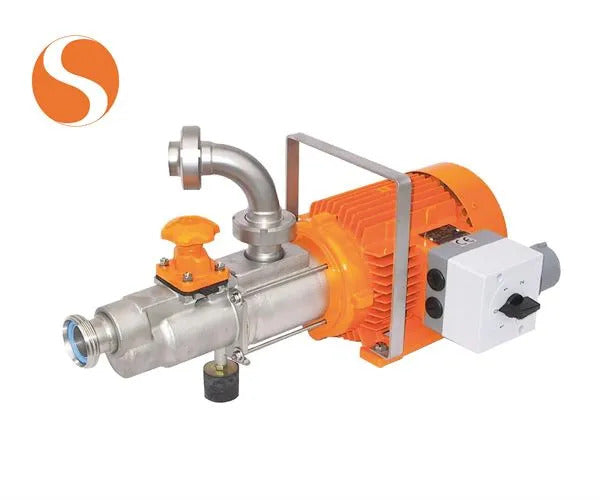

Schneider SP eccentric screw pumps with bypass

Eccentric screw pumps, also known as progressive cavity pumps, are highly versatile. They are ideal for pumping viscous liquids, fruit pulp, and free-running liquids. The SP eccentric screw pump range is manufactured by Schneider Pumpen, who have over 70 years' experience manufacturing pumps. The SP range includes 4 models of pump, with a capacity range from 2,800 to 40,000 litres per hour.

  • High quality eccentric screw pumps
  • Models range from 2,800 to 40,000 litres per hour
  • 2 speed as standard
  • Reversible motor for pumping in either direction (forward & back)
  • Smooth, gentle flow
  • Suitable for free-running, viscous liquids, and liquids containing a high solid load, such as fruit pulps
  • Ideal for use (where necessary) between milling/crushing and pressing equipment and for routine transfer from tank to tank or vessel to vessel
  • With bypass
  • Stainless steel rotor and contact parts
  • Mounted on a trolley

NB: Threaded connections to your specification - please advise us of your requirements immediately after ordering

NB Spiral reinforced hose should be used with these pumps - see the Hoses link below.

NB for a variable speed version of these pumps, please see SP Evario Eccentric Screw Pumps

Can be used with our Remote Control System - (part codes 93303 & 93304) - available separately.

We've supplied hundreds of Scheider pumps over the years. See the 'Schneider' tab below for some customer Case Studies which include Schneider pumps.

Please call us on 01404 892 100 to discuss your pump requirements.



NB You can order spare stators online for this pump - please see the Spares category in Catalogue and Refine by 'Type'.



Please see the Pumps category in Catalogue for our full range of Pumps.

For hoses, please see our Hoses category; For hosetails and other fittings, please see our Fittings category. Please also see our Mills - Apple, Presses - Apple, & Tanks.

Application

Eccentric screw pumps, also known as progressive cavity pumps, are highly versatile. They are ideal for pumping viscous liquids, fruit pulp, and free-running liquids. Please note, for high solid loads, models SP3 & SP4 are the appropriate pumps [SP1 & SP2 are more suitable for pumping liquids gently with minimum agitation].

They are not generally suitable for use with filters unless the pump has a precise variable speed control - the standard version of this pump doesn't have variable speed control, however see the an eccentric screw pump with variable speed control.

  • Maximum ABV: 15%



Specification

SP1 eccentric screw pump with bypass - more suited to pumping liquids gently with minimum agitation, rather than pumping high solid loads

  • Flow rate: 2800/5600 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 1.5 kW
  • Threaded connection to your specification
  • Weight: 24 kg

SP2 eccentric screw pump with bypass -more suited to pumping liquids gently with minimum agitation, rather than pumping high solid loads

  • Flow rate: 4500/9000 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 2.2 kW
  • Threaded connection DIN65 as standard, otherwise to your specification
  • Weight: 33 kg

SP3 eccentric screw pump with bypass - ideal for high solid loads

  • Flow rate: 10,000/20,000 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 3 kW
  • Threaded connection DIN65 as standard, otherwise to your specification
  • Weight: 75 kg

SP4 eccentric screw pump with bypass - ideal for high solid loads

  • Flow rate: 20,000/40,000 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 7.5 kW
  • Threaded connection DIN100 or 90Mash as standard, otherwise to your specification
  • Weight: 88 kg



Schneider

Schneider Pumpen GmbH have specialised in the design and manufacture of pumps for drink applications since 1948, however, the origins of their company date back to 1920. We have have been supplying their pumps for decades and are pleased to be their UK agents.

Here are some of the reasons why we choose Schneider:

  • They have over 70 years' experience in the design, manufacture of pumps for wine industry
  • Their pumps are suitable for most drink applications
  • They provide one the widest selection of filtration vessels, depth filters and pleated cartridges available today
  • Their aim is to supply the right pump for the right application and their focus during design is the consistency, viscosity, weight of the product; the pressures required; the protective features required (e.g., guarding against overpressure, etc.); and hydrodynamic and volumetric considerations
  • Their pumps are manufactured to a high standard and designed for ease of use, efficiency and low maintenance
  • They are a solid and committed family-run company

The range

The Schneider range includes the following pumps:

  • Impeller pumps for the rapid transfer of liquids, e.g., when pressing fruit, raking off after fermentation, and pumping from one tank or vessel to another
  • Eccentric screw pumps for pumping viscous liquids, fruit pulp, and free-running liquids
  • Centrifugal pumps ideal for use with filters and bottle fillers where a smooth, regulated flow is required
