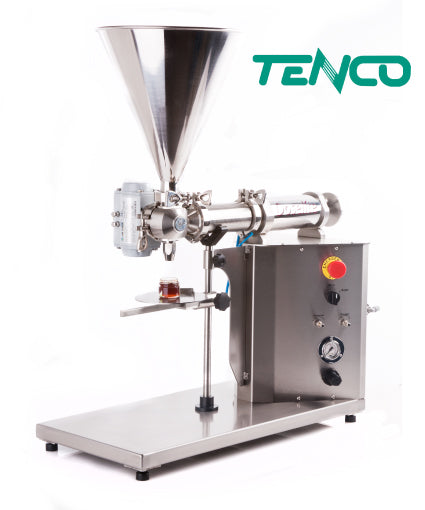

Tenco Doselite single or double head volumetric filler / dosing machine

The Doselite is available as a single or double head volmetric filler / dosing machine, manufactured by Tenco, for filling bottles and jars with thick / gloopy / viscous products (such as sauces, jams, etc.), and/or free running or slightly viscous still liquids (such as wine, spirits/liqueurs* and oils). The machine allows you to precisely dose small or big quantities of product, and can be used to dose drink, food, cosmetic, chemical, or pharmaceutical products - you can even fill particularly dense products with the Doselite. The machine allows you to fill your products into jars and bottles of any material.

  • Single head or double head versions available - the double head versions have 2 dosing chambers
  • Easy to use
  • Precision filling
  • Uses a simple filling method - through a suction system the product is introduced into the dosing chamber and pushed through the output valve and attached nozzle
  • Customised valves & nozzles suitable for your product's viscosity - nozzles are interchangeable
  • AISI 316 stainless steel contact parts, so suitable for both the food & pharmaceutical industries
  • Associated seals can be supplied in the appropriate material to suit the industry and/or the temperature to be filled at
  • Typically supplied as pneumatic so that no electricity or external pumps are required to push the product, however, an electric version is also available
  • Models available for the following dose ranges:
    • 0 to 38 ml
    • 2 to 100 ml
    • 5 to 250 ml
    • 20 to 680 ml
    • 50 to 1300 ml
  • Hand-wheel at the back of the Doselite which determines the product volume
  • Product suction & output speed controlled by 2 airflow regulators
  • Product delivery via mounted hopper or via hose from external storage tank
  • Available as a bench-top version or on a trolley in order to be easily connected to a storage tank
  • Easy to clean an dismantle (no tools required)
  • Optional accessories include hoppers (heated if necessary; with pressing/push-down system if necessary - for pastes, doughy products, or gelato); heating element for cylinder; mobile handle (hand-held) valve; Doypack pouch filling device, etc.

NB If the pneumatic model is chosen, a compressor is required to operate this product

NB For filling larger capacity doses (<5 litre) and/or for a wider dose range (200ml to 5 litres), please see the Dosematic Plus

Please call us on 01404 892100 to discuss your filling requirements.



Please see the Fillers category in Catalogue for our full range of filling machines.

[Did you know that our sister company, Rawlings, supplies bottles and jars? See Glass Packaging]

Application

Valves & nozzles

The valve(s) and nozzle(s) supplied are determined by the viscosity of the product. They can be supplied for:

  • Thick products including sauces (e.g., bolognese, pesto, mayonnaise, chocolate, etc.), jams, syrups, honey, yoghurt, pastes (e.g., chocolate, etc.), cosmetics (e.g., creams, gels, lotions, scrubs, pastes, nail varnishes, perfumes, etc.) and detergents - shut off valves are supplied for dosing hot sticky products such as honey
  • Slightly viscous liquids, such as wine, liqueurs, spirits (up to 40% ABV) and oils
  • Free running still liquid

Anti-drip nozzles, anti-foam nozzles, spray defuser nozzles, 8 hole nozzles, muti-dispenser device, etc., all available.

Containers

The container size(s) will determine the model required (dosage capacity) and the nozzles required

  • Suitable for bottles & jars of any material
  • Doypack pouches (see image)



Specification

  • 3 way valve supplied with every model: takes product from source, into the piston and out to the nozzle
  • Changeable 2 way nozzle as filling head
  • Tri-clamp fittings



YouTube





Tenco

Tenco specialise in machinery for filling semi-liquid and liquid products for beverage, food & pharmaceutical industries. We have supplied Tenco vacuum fillers for many years and they remain hugely popular for filling both liquid & semi-viscous products. We also supply Tenco volumetric fillers for filling thick products.

Here are some of the reasons why we choose Tenco:

  • Tenco are innovators: Founder Giuseppe Tenco developed a table-top filler originally for wine manufactured with robust materials, which was easy to use and clean, which he called the 'Enolmatic'; the Enolmatic soon became the filling machine which made the name Tenco known all over the world, swiftly followed by the Enolmaster. The company expanded and began developing and manufacturing filling technologies for a very wide range of liquid, semi-viscous, and viscous products, including spirits, liqueurs, syrups, vinegar, fruit juice, oils, chocolate, jam, sauces, honey, and oils.
  • Tenco machines are designed for small and medium sized producers and are ideal for pilot product development
  • Tenco's production values remain unchanged - intelligent technology and the best materials

The range

We supply the range of Tenco vacuum fillers and Tenco volumetric fillers, all of which are semi-automatic.

Blog

Read about one particular vacuum filler in the Tenco range - the Enolmaster - in our Small scale craft bottling blog.

Tenco Video

Watch the Tenco video here

What we offer...

We have supplied Tenco fillers since 1999. We can offer you:

  • Advice on the appropriate filler for you - taking budget, desired throughput, labour, etc. into consideration
  • Comprehensive 12 month warranty, backed up by our team of Vigo engineers
  • Maintenance & full technical backup and support from our mobile engineers

Case Studies

The Case Study below represents only one of the hundreds of Tenco fillers we have supplied over the years to a variety of different drink producers:

How can we help you?

If you're looking to increase your filling capability, or you are a new start-up, please call us on 01404 892100 and we will be happy to discuss your requirements.
