• Tenco Enolmaster 4 head electric vacuum filler
  • 96328 2

Tenco Enolmaster 4 head electric vacuum filler

RefNameStockPriceQty
96328Tenco Enolmaster 4 head electric vacuum filler

Live Stock Unavailable

In stock

Back Order

£2000.00 ex. VAT

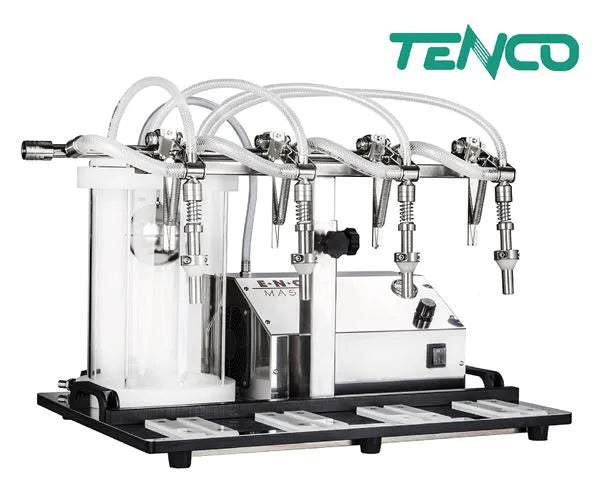

This Enolmaster is a 4 head benchtop vacuum filler, manufactured by Tenco, for filling glass bottles with free running or slightly viscous still liquids, such as wine, spirits/liqueurs* and oils

  • 4 head
  • Easy to use
  • Uses a simple filling method - the vacuum pump removes air from the bottle and draws the product via vacuum from a container into the bottle, without the product coming into contact with the pump or any mechanical parts - filling stops when the correct fill level is reached
  • Fills up to 600 bottles per hour, depending on the viscosity of the product
  • Stainless steel filling nozzles
  • Pyrex vessel
  • Optional in-line cartridge filter available - See Tandem Professional filter housing for Enolmaster (part code 95370), available separately
  • Supplied with standard nozzles (see Application) - for different nozzles to fill miniature bottles and bottles of other shapes - please call us on 01404 892 100 to discuss

(*) NB If using with for spirits, only spirits with an ABV of up to 40% should be used with this filler. If your product is over 40% ABV, please see the Enolmaster 4 Head PneumaticVacuum Filler (part code 96707).

NB If using for sugary liqueurs or products containing sugar, the Oil Bath Filter for Electric Enolmaster (part code 72582), available separately, must be used to protect the Enolmaster's vacuum pump from damage



NB Should you need them in the future, spare / replacement stainless steel nozzles for this filler can be ordered online - see Stainless Steel Nozzle (part code 72539)

Please see Closures for our range of caps and corks for glass bottles.

Please see the Fillers category in Catalogue for our full range of filling machines.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

Application

  • For free running or slightly viscous liquids, such as wine, liqueurs, spirits (up to 40% ABV) and oils
  • Suitable for glass bottles within the following parameters:
    • internal neck diameter between 16 to 28mm
    • bottle height between 180 to 350mm

NB If using for sugary liqueurs or products containing sugar, the Oil Bath Filter for Enolmaster (part code 72582), available separately - see link in description - must be used to protect the Enolmaster's vacuum pump from damage



Specification

  • 4 stainless steel filling nozzles
  • Adjustable fill level
  • Pyrex vessel
  • See Application for bottle parameters
  • Stainless steel base and housing
  • Power supply: single phase, 220V, 50Hz
  • Dimensions (w x d x h): 650 x 460 x 400 mm
  • Weight: 25kg



YouTube

Our thanks to Nordic Wellness Drinks, producers of Nordic water kefir for allowing us to use their video.

Tenco

Tenco specialise in machinery for filling semi-liquid and liquid products for beverage, food & pharmaceutical industries. We have supplied Tenco vacuum fillers for many years and they remain hugely popular for filling both liquid & semi-viscous products. We also supply Tenco volumetric fillers for filling thick products.

Here are some of the reasons why we choose Tenco:

  • Tenco are innovators: Founder Giuseppe Tenco developed a table-top filler originally for wine manufactured with robust materials, which was easy to use and clean, which he called the 'Enolmatic'; the Enolmatic soon became the filling machine which made the name Tenco known all over the world, swiftly followed by the Enolmaster. The company expanded and began developing and manufacturing filling technologies for a very wide range of liquid, semi-viscous, and viscous products, including spirits, liqueurs, syrups, vinegar, fruit juice, oils, chocolate, jam, sauces, honey, and oils.
  • Tenco machines are designed for small and medium sized producers and are ideal for pilot product development
  • Tenco's production values remain unchanged - intelligent technology and the best materials

The range

We supply the range of Tenco vacuum fillers and Tenco volumetric fillers, all of which are semi-automatic.

Blog

Read about one particular vacuum filler in the Tenco range - the Enolmaster - in our Small scale craft bottling blog.

Tenco Video

Watch the Tenco video here

What we offer...

We have supplied Tenco fillers since 1999. We can offer you:

  • Advice on the appropriate filler for you - taking budget, desired throughput, labour, etc. into consideration
  • Comprehensive 12 month warranty, backed up by our team of Vigo engineers
  • Maintenance & full technical backup and support from our mobile engineers

Case Studies

The Case Study below represents only one of the hundreds of Tenco fillers we have supplied over the years to a variety of different drink producers:

How can we help you?

If you're looking to increase your filling capability, or you are a new start-up, please call us on 01404 892100 and we will be happy to discuss your requirements.
