Vigo 20 x 10cm sheet filter

RefNameStockPriceQty
95175Vigo 20 x 10cm sheet filter

Live Stock Unavailable

In stock

Back Order

£194.25 ex. VAT

The Vigo 20 x 10cm sheet filter is a simple small-scale plate filter with pump for use with up to 10 filter sheets (available separately - see below), suitable for wine, cider, beer and some other beverages.

  • Suitable for filtering around 100 litre
  • Output up to 160 litres per hour, depending on product
  • Set of filter plates included
  • Includes pump which can be used independently of the filter
  • Simple to operate, easy to clean
  • Accepts 20 x 10cm filter sheets (not included, available separately) - a range of different filter sheet grades are available - see below
  • Can be used with a reduced number of filter sheets (6 minimum) when filtering smaller batches
  • Maximum ABV product content: ABV: 18%
  • Supplied with 3 metres of 10mm bore clear braided hose and hose clips to fit

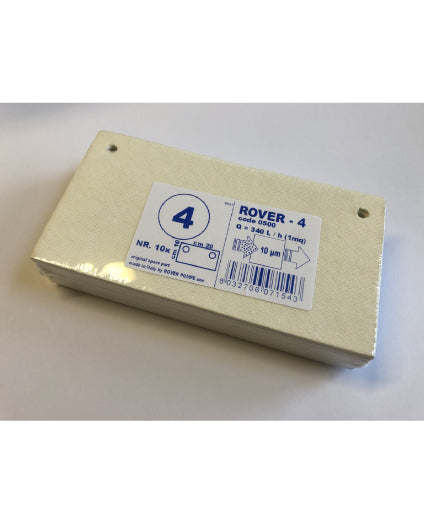

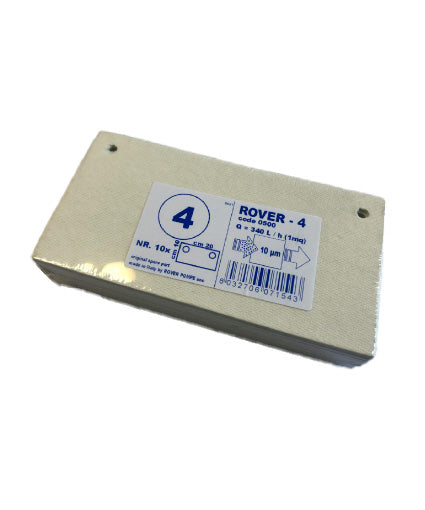

NB Filter sheets not included - please see 20 x 10cm Filter Sheets (part numbers 95988, etc. - available separately)



NB You can order spares online for this pump - please see the Spares category in Catalogue and Refine by 'Type'.





Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.



Application

Please note, not suitable for products with an ABV greater than 18%

Specification

  • Capacity: 100-160 litres/hour
  • 2000cm² total sheet area; 1500cm² effective filtration area
  • 420 litre/hour pump
  • Pump Inlet & outlet: 10 mm
  • Supplied with 3 metres of 10mm bore clear braided hose and hose clips to fit
  • Power: 230 V, 50 Hz, 0.5 HP
  • 5 metre cable with moulded UK plug
  • Dimensions: Length 400 x Width 270 x Height 250 mm
  • Weight: 12 kg
