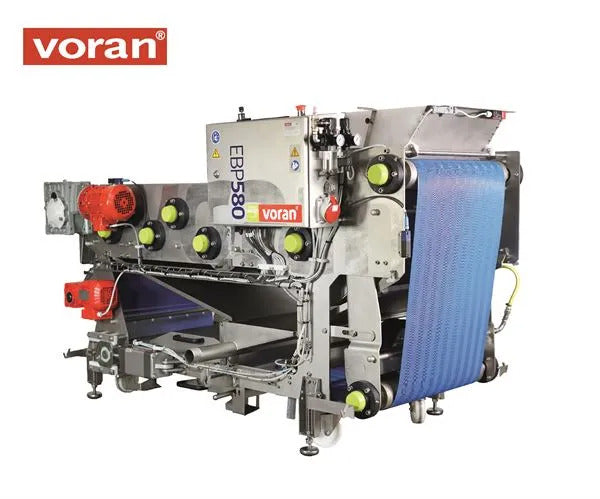

Voran EBP580 belt press

Voran EBP580 belt press

Enquire Online

The EBP580 belt press is manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925.

Automatic belt presses offer a way of pressing high volumes of fruit pulp with minimal labour costs. When used with a Voran wash mill and elevator (available separately - see below), the belt press offer continuous, automatic pressing and milling of apples. Belt presses are typically used to press milled apples, but press some other fruits and vegetables - see Application for list.

Pulp (e.g., apple pulp from milled apples) is fed continuously onto the porous belt of the belt press and pressed against a series of steel rollers, which extract the juice. Yields are comparable and, in some cases, higher than those achieved by hydraulic presses. Using a belt press gives a short pressing time and leads to minimal air contact. The quality of the juice is usually very high as a result, with minimal solid content.

Installed & commissioned by our Engineers.

Ideal for use with the Voran Juice Collection Tank for Belt Presses.

Please contact us on 01404 892100 to discuss your pressing requirements.

Please see the 'Voran' tab below for customer Case Studies.



For accessories, please see our PPE & Tools categories in Catalogue.

Please see the Apples - Presses categories in Catalogue for our full range of presses.

Please see Mills - Apple for our range of mills.

Application

Suitable for

  • Pome fruits (apples, pears & quince)

Other fruits/vegetable which Voran confirm can be used:*

  • Beetroot
  • Carrots
  • Manioc

Fruit should be prepared for pressing as follows:

  • Apples and pears must be milled

For advise on fruit preparation of the other fruits/vegetables listed above, please ask us to confirm this.

Features

The Voran range of automatic belt presses from Vigo offer you the following features:

  • Continuous, automatic operation where operated with a Voran wash mill & elevator
  • Pulp is fed continuously onto a porous belt and pressed against a series of steel rollers, which extracts the juice
  • Minimal labour and supervision required, reducing production costs
  • High juice yields - see main description
  • Short pressing time and minimal air contact to reduce oxidation of juice
  • Flexibility to press small batches of fruit – useful if pressing single varieties or contract pressing for smaller customers
  • Full stainless steel construction
  • Automatic belt cleaner by pressure washer to optimise yield and efficiency
  • Pneumatic belt tensioners
  • Level controls available to automatically regulate pumping of juice to holding tanks
  • Simple operation and cleaning
  • Optional rotary belt cleaning brush to reduce water consumption
  • Set-up, commissioning and training carried out by experienced Vigo engineers
  • Comprehensive 2 year warranty, backed up by Vigo engineers



Specification

  • Model: EBP580
  • Capacity: Up to 1,000 kg per hour
  • Juice yield: Up to 75%, depending on fruit variety and quality
  • Belt width: 580mm
  • Conveyor width: 240 - 460mm
  • Belt speed controller via inverter
  • Belt speed: 2.1 - 5.5 (continuous) m/min
  • Height of pomace ejector: 745mm
  • Height of juice outlet: 305mm
  • Discharge height: 1290mm
  • Water consumption for cleaning: 3 l/min
  • Height of waste water drain: 86mm
  • Conveyor height: 10 - 50 (9 stages) mm
  • Conveyor width: 240 - 460mm
  • Connection for juice outlet: 1½"
  • Connection for waste water drain: DIN75
  • Motor: 0.75 kW
  • Voltage: 400 V
  • Construction: AISI 304 stainless steel
  • Dimensions: Width 1270 x Depth 2145 x Height 11290 mm
  • Weight: 665 kg
  • Compatible wash mill and elevator: SA200, WA LC40 or WAR65



YouTube

Showing the EBP580 belt press in line with the GKE bin tipper, the BRM cleaning & sorting table and the SA wash mill & elevator:

Voran

Established in 1925, Voran is the market leader in commercial fruit processing equipment.

We have been supplying Voran equipment since 1987. Here are the reasons why we choose Voran for their presses, mills and reception equipment:

  • Their extensive specialist experience in apple processing (coming up to 100 years)
  • Voran's presses are designed to achieve excellent juice yields from fresh and stored fruit (up to 80%, depending on model, fruit variety and fruit quality) for optimised raw juice quality (freshness, flavour, aroma & structure) and low juice turbidity
  • Their equipment is of high build quality and extremely robust - there are many Voran presses in the UK over 20 years old which are still giving good service today
  • Their presses and mills are designed for fast juice collection for minimal oxidation
  • Their range is modular and process-based
  • They manufacture in-house at their site in Austria and so are in full control of the manufacturing process
  • Their manufacturing processes are optimised to produce high quality equipment through stringent quality assurance
  • They operate via ISO 9001 quality assurance standards and are TÜV AUSTRIA certified
  • Their commitment to product development in response to the needs of juice producers and market trends has been demonstrated year on year
  • Voran’s original vision was to trade with integrity and to engender trust - these core values have remained fundamental to the success of the company

The Voran Range

The Voran range covers all scales of production and includes the equipment below:



Voran Video

Watch the Voran video here.

Blog

Read our Vigo, Voran & varients of press blog.

What we offer...

We can offer you:

  • Advice on the appropriate equipment for you – taking budget, space, desired throughput, labour, etc. into consideration
  • Competitive prices
  • Advice on integrating new equipment into existing schemes
  • Trade-in options for your used (Voran) equipment
  • Advice on layout of equipment, power/water requirements in your building, etc.
  • Equipment thoroughly tested prior to dispatch by our experienced team of Vigo engineers
  • Conversion to single-phase power where required
  • Vigo engineers install & commission on site and provide training to you and your staff where necessary
  • Comprehensive 2 year parts and labour warranty on Voran presses, backed up by Vigo engineers
  • Maintenance & full technical backup and support from our mobile engineers
  • Good stock of spare parts

Case Studies

The Case Studies below represent a small sample of the hundreds of presses we have supplied over the years [NB: More case studies are listed in the Cider & Juice category of Case Studies]:

How can we help you?

If you're looking to upgrade your fruit processing system, or start from scratch, please call us on 01404 892100 and we will be happy to discuss your requirements.
