Application
- Different graters (perforated screens) are available depending on the degree of milling required
- Versions available for the Voran hydraulic swivel (PS) bed presses and the Voran EBP500/580/650 belt presses

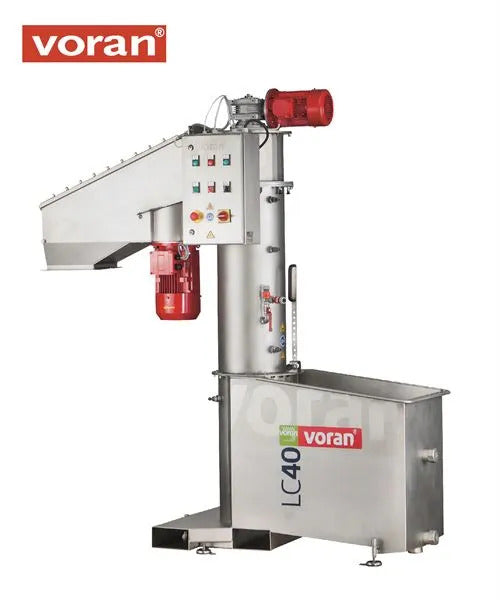

Voran WA LC wash mills & elevator
WALC40 wash mills with elevator are manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925. These washing and milling units greatly free up time spent shovelling pomace into the hydraulic bed apple press, and reduce waste - reducing costs and allowing greater throughput. When used with the appropriate belt press, they wash fruit and deliver it milled directly to the belt press, automating the milling and pressing process. The WA/LC40 has the following features:
- Capacity of up to 3000 kg per hour
- Suitable for milling apples and pears (some other fruits and vegetables can be processed - please contact us to discuss)
- Fruit elevated to mill from water bath by auger
- Fruit receives a spray of water during elevation
- Variable speed
- Stainless steel construction throughout
- Versions available for the Voran Hydraulic Swivel (PS) Bed Presses , Voran Hydraulic Swivel (180PS) Bed Stainless Steel Press, and the Voran EBP500 / 580 / 650 Belt Presses
- Single or 3 phase versions available
Installed & commissioned by our Engineers.
See the 'Voran' tab below for customer Case Studies.
Please call us on 01404 892100 to discuss your milling requirements.
NB You can order interchangeable / replacement grater screens (with different sized perforations) online for this mill - please see the Spares category in Catalogue and Refine by 'Type'.
Please see the Mills - Apple category for our full range of apple mills.
Please see the Presses - Apple category for our range of apple presses.
Please see the Reception & Sorting - Apples category for our range of Bin Tippers and Apple Cleaning & Sorting Tables.
For accessories, please see our PPE & Tools categories in Catalogue.
Features
- Fruit is fed into a washing bath and is elevated into the mill, receiving a spray of water while being elevated
- The fruit is pulverised by a heavy rotor and pulp is discharged through a perforated screen - for different types of fruit, screens can be changed for versions with different sized perforations to optimise the consistency of the pulp for pressing, which can allow you to get optimum juice yields.
Voran are the market leaders in fruit juice processing equipment. The Voran range of wash mills/elevators from Vigo offer you the following features:
- Robust and heavy duty mills
- Continuous, automatic operation where operated with a belt press
- Minimal supervision required - reducing labour costs
- Full stainless steel construction
- Simple operation and cleaning
- Set-up, commissioning and training carried out by experienced Vigo engineers For more information about the Voran range, click on the **Voran tab (right).
Specification
WA LC (for 100PS)
- Capacity: Up to 3000 kg per hour
- Mill type: RM40
- Fruit feed/water bath height: 720mm
- Height of mash outlet: 1260mm
- Fresh water connection: 1/2"M
- Connection for waste water/overflow: 2"/DIN75M
- Cleaning connection: 1/2"M
- Motor: Elevator 1.5 kW / Mill 4 kW
- Total power consumption in kW: 6.2kW (8.5PS)
- Voltage: 230 / 400 V
- Hertz: 50Hz
- Construction: Stainless steel AISI 304
- Dimensions: Width 700 x Depth 2000 x Height 2155 mm
- Weight: 285 kg
WA LC (for 180PS)
- Capacity: Up to 3000 kg per hour
- Mill type: RM40
- Fruit feed/water bath height: 720mm
- Height of mash outlet: 1460mm
- Fresh water connection: 1/2"M
- Connection for waste water/overflow: 2"/DIN75M
- Cleaning connection: 1/2"M
- Motor: Elevator 1.5 kW / Mill 4 kW
- Total power consumption in kW: 6.2kW (8.5PS)
- Voltage: 230 / 400 V
- Hertz: 50Hz
- Construction: Stainless steel AISI 304
- Dimensions: Width 700 x Depth 2000 x Height 2392 mm
- Weight: 290 kg
WA LC (for EBP580)
- Capacity: Up to 3000 kg per hour
- Mill type: RM40
- Fruit feed/water bath height: 720mm
- Height of mash outlet: 1300mm
- Fresh water connection:1/2"M
- Connection for waste water/overflow: 2"/DIN75M
- Cleaning connection: 1/2"M
- Motor: Elevator 1.5 kW / Mill 4 kW
- Total power consumption in kW: 6.2kW (8.5PS)
- Voltage: 230 / 400 V
- Hertz: 50Hz
- Construction: Stainless steel AISI 304
- Dimensions: Width 700 x Depth 2000 x Height 2155 mm
- Weight: 280 kg
WA LC (for EBP650)
- Capacity: Up to 3000 kg per hour
- Mill type: RM40
- Fruit feed/water bath height: 720mm
- Height of mash outlet: 1510mm
- Fresh water connection: 1/2"M
- Connection for waste water/overflow: 2"/DIN75M
- Cleaning connection: 1/2"M
- Motor: Elevator 1.5 kW / Mill 4 kW
- Total power consumption in kW: 6.2kW (8.5PS)
- Voltage: 230 / 400 V
- Hertz: 50Hz
- Construction: Stainless steel AISI 304
- Dimensions: Width 700 x Depth 2000 x Height 2392 mm
- Weight: 285 kg
YouTube
NB The video shows a WA/LC wash mill with elevator and an EPB500 belt press
Voran
Established in 1925, Voran is the market leader in commercial fruit processing equipment.
We have been supplying Voran equipment since 1987. Here are the reasons why we choose Voran for their presses, mills and reception equipment:
- Their extensive specialist experience in apple processing (coming up to 100 years)
- Voran's presses are designed to achieve excellent juice yields from fresh and stored fruit (up to 80%, depending on model, fruit variety and fruit quality) for optimised raw juice quality (freshness, flavour, aroma & structure) and low juice turbidity
- Their equipment is of high build quality and extremely robust - there are many Voran presses in the UK over 20 years old which are still giving good service today
- Their presses and mills are designed for fast juice collection for minimal oxidation
- Their range is modular and process-based
- They manufacture in-house at their site in Austria and so are in full control of the manufacturing process
- Their manufacturing processes are optimised to produce high quality equipment through stringent quality assurance
- They operate via ISO 9001 quality assurance standards and are TÜV AUSTRIA certified
- Their commitment to product development in response to the needs of juice producers and market trends has been demonstrated year on year
- Voran’s original vision was to trade with integrity and to engender trust - these core values have remained fundamental to the success of the company
The Voran Range
The Voran range covers all scales of production and includes the equipment below:
- Mills for apples & a universal shredder for vegetables and other specific foodstuffs
- Presses for pomme fruits (apples, pears & quinces); some other fruits and vegetables can be used depending on the model of press
- Bin Tippers & an apple Cleaning & Sorting Table
- Destoning machines for stoned fruits
