Specification
The diameter of wire determines the size of Gripple required, as shown in the specifications below:

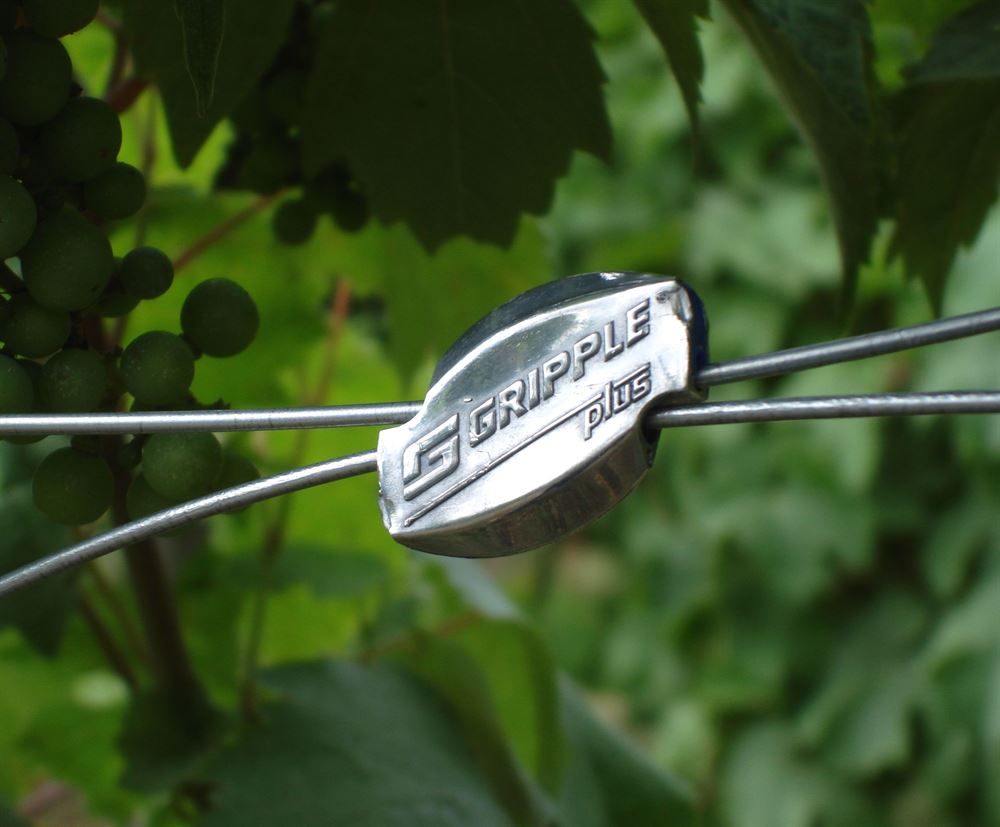

Gripple Small wire tensioners/joiners
- For use with wire Ø: 1.40 - 2.20 mm
- Includes 300 Small Gripples and the Torq Tool
- Maximum load: 300 kg
Gripple Medium wire tensioners/joiners
- For use with wire Ø: 2.00 - 3.25 mm
- Includes 250 Medium Gripples and the Torq Tool
- Maximum load: 400 kg
Gripple Large wire tensioners/joiners
- For use with wire Ø: 3.25 - 4.20 mm
- Includes 150 Large Gripples and the Torq Tool
- Maximum load: 600 kg
Gripple No1 end post tensioners
- For use with wire Ø: 1.08 - 3mm
- For use with wire SWG: 15 - 11 ga
- For tensioning at metal end posts
- Includes 200 No.1 Gripples and the Torq Tool
- Maximum load: 400 kg
