Application
To use with Cylinder airlock (product code 28201), available separately, choose 44 to 37mm taper Ø x 38mm bored Compound Bung (product code 35506 - as listed on Compound Bungs, Bored), available separately.

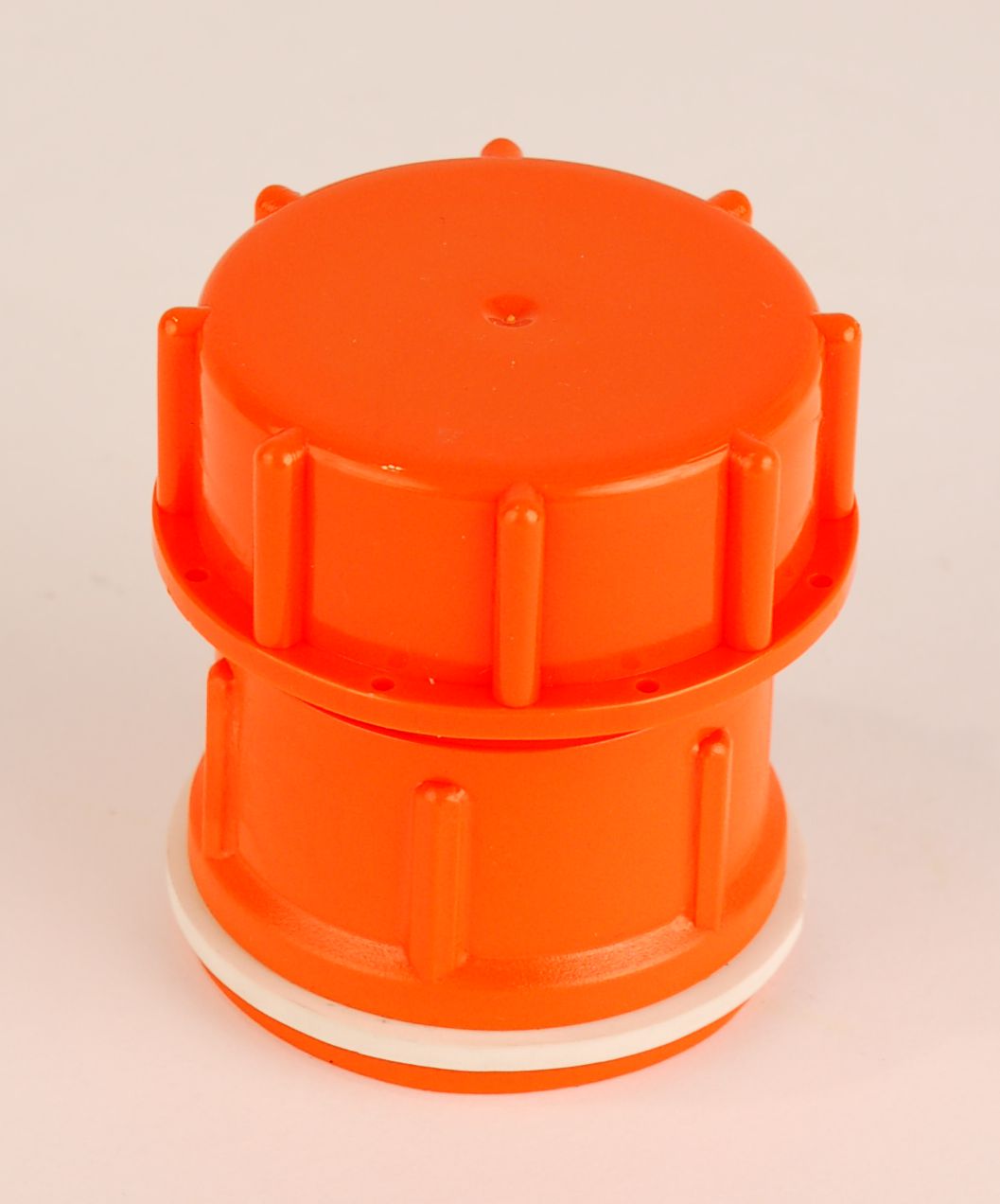

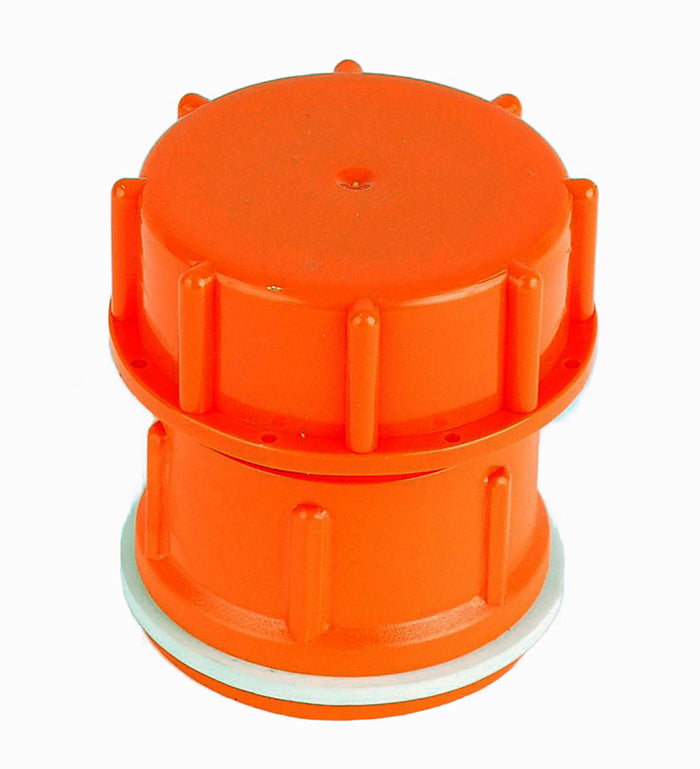

Bulkhead airlock adaptor (orange)
- Enables an airlock and bung to be fitted to the hole of a flat-topped tank (e.g., plastic ex-juice drums and variable capacity tanks)
- Suitable for use with Speidel Variable Capacity Tanks Stainless Steel Tanks (type BO & FO) with a tank diameter of up to 820mm (please see these tanks listed in the Tanks category)
- Keeps the stem of the airlock above the level of the liquid while allowing the vessel to be filled to the underside of the lid to exclude air
- Supplied with durable flat seal
- Supplied with screw-on cap for use with a bung and airlock
- Easy to fit: push male fitting up through the hole in the tank lid/top so the seal is up against the underside of the lid/top; screw female fitting onto male fitting
- Tank hole needs to be 44mm diameter
NB The additional image images show this product in use with an airlock and bung - the airlock and bung are not included but available separately - see Application.
NB A version of this airlock adaptor is available without a cap - see Airlock Adaptor - product code 35201
Please see Airlocks & Bungs in Catalogue for our full range or airlocks & bungs.
Please see the Tanks category in Catalogue for our full range of fermenters/tanks.
Specification
Male fitting:
- Bottom rim outside Ø: 51mm
- Collar outside Ø (widest point): 42mm
Female fitting:
- Inside Ø (at top): 36mm
- With thread on outside for cap supplied
When screwed together (without cap):
- Height: 57mm
