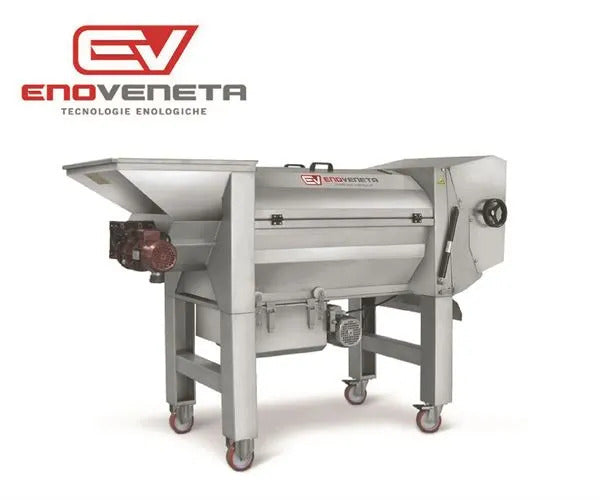

Enoveneta TOP destemmers / crushers

The TOP range of destemmers / crushers are manufactured by internationally renowned Enoveneta, who have been manufacturing oenological equipment for over 50 years. Their range covers production outputs from 3 to 26 tonnes per hour.

  • Available models: TOP 5 (5 to 6 tonnes); TOP 10 (10 to 12 tonnes); TOP 15 (15 to 16 tonnes); TOP 25 (23-26 tonnes)
  • Gentle action with rubber covered beating paddles with adjustable tips
  • Optional motorised crushing unit (detachable when required) with adjustable rubber rollers
  • For both hand-picked and machine harvested grapes
  • Easy adaptability to different grape varietals
  • Mechanical variable speed auger (electronic on TOP 25)
  • Mechanical variable speed beating shaft cylinder (independent from auger speed) (electronic on TOP 25)
  • Shaft cylinder with 22/22mm Ø holes as standard (22/18mm Ø instead on request), apart from TOP 25 which is 25/22mm Ø
  • Free run juice separation with draining channels and juice outlet
  • Easy to clean and maintain
  • Side covers open for easy access and cleaning
  • Front cover lifts to facilitate removal of the beating shaft cylinder
  • Stainless steel (AISI 304) construction on wheels
  • Electric control panel

See Features for available options

Can be installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your crushing / destemming requirements.

See the 'Enoveneta' tab (below) for customer Case Studies.



Please see the Crushers / Destemmers - Grape category for our full range.

Please see the Presses - Grape category for our range of grape presses.

Please see the Reception & Sorting - Grapes category for our range of Grape Sorting & Vibration Tables.

Features

Optional:

  • Motorised crushing unit (detachable when required) with adjustable rubber rollers, quick connections system to the destemmer discharge, Teflon wheels for manoeuvrability - see Specification for details
  • Hopper elevation frame for feeding with bins (TOP 10-15 only)
  • PVC or stainless steel splash guard
  • Must/crushed collecting trough with motorised auger
  • Nozzles for CIP
  • Beating shaft with smaller, adjustable paddles
  • Electro-polishing of cylinder and beating shaft
  • Hopper for grape stalks



Specification

  • Three phase, 400V, 50Hz
  • Outlet: To your specification (supplied with Garolla as standard)

kW. Dimensions (L x W x H) & Weight:

  • TOP 5:
    • 1.8+0.37kW
    • 2100 x 800 x 1300mm
    • weight 220kg
    • (Optional Crushing Unit: 1.1kW; 500 x 500 x 220mm; weight 40kg)
  • TOP 10:
    • 2.2+0.55kW
    • 2400 x 850 x 1500mm
    • weight 270kg
    • (Optional Crushing Unit: 1.1kW; 700 x 500 x 220mm; weight: 70kg)
  • TOP 15:
    • 2.2+0.55kW
    • 2700 x 1000 x 1500mm
    • weight 300kg
    • (Optional Crushing Unit: 1.1kW; 700 x 500 x 220mm; weight 70kg)
  • TOP 25:
    • 4+1.1kW
    • 2750 x 1000 x 700mm
    • weight 700kg
    • (Optional Crushing Unit: 1.5kW; 800 x 500 x 220mm; weight 80kg)



YouTube

See Enoveneta equipment in action at a small-scale winery ...

Enoveneta

Enoveneta has been manufacturing oenological equipment in northeast Italy for over 60 years and is owned and run by the Fiorin family.

Its growth from an owner-managed business to an internationally renowned manufacturer with over 80 specialist staff is testament to the knowledge and energy of its founder, Nedo Fiorin, and the vision of the next generation of the family - Cristina, Daniela, Paolo and Renato (as pictured).

Here are the reasons why we choose Enoveneta:

  • They have over 60 years' experience in the development, research, and manufacture of oenological equipment
  • They strive for 'continuous perfection and innovation' of their products
  • Their equipment is well designed, robust, and user-friendly
  • They are TÜV SÜD certified, to ensure quality, reliability and consistency during manufacturing and construction
  • They are SCI ISO 9001 certified, operating via a stringent quality management system, which includes rigorous ongoing reviews
  • They manufacture their equipment themselves in Italy and so are in complete control of the process
  • Their pneumatic presses & pumps are manufactured to Industry 4.0 technological standard for: control & management via PLC; remote access from PC, smartphone & tablet; remote diagnostics; interconnection between other Industry 4.0 machines already in the winery
  • They are a solid and committed family-run company with more than 80 skilled/specialist employees
  • They produce a wide range of technological machines which are customised and competitively priced
  • They are internationally renowned, supplying many countries from France to Brazil, from Russia to Germany up to Canada, having installed equipment in 45 countries in all
  • They believe in being as sustainable as they can and so have their own solar panel plant

The Enoveneta range includes:

  • Grape crushers/destemmers
  • Pneumatic diaphragm presses
  • Grape vibrating/sorting tables
  • Grape elevators
  • Mono pumps
  • And more - see our Spotlight on Enoveneta blog for a full list of their range

Case Studies

The case studies below represents just 2 of a good number of vineyards we've supplied Enoveneta equipment to. Please ask us about the rest.

You can see Enoveneta case study videos via our Spotlight on Enoveneta blog.

What we offer

In partnership with Enoveneta, we can offer you:

  • Advice on the appropriate equipment for you - taking budget, space and desired throughput into consideration
  • A comprehensive quotation outlining our recommended solution/s
  • Full machine specifications with clear pricing
  • Multi-skilled (Vigo) engineers to install and commission your equipment on site and provide training to you and your production operatives
  • Comprehensive 12 month warranty, backed up by our team of Vigo engineers
  • Full technical backup and support from our mobile engineers

How can we help you?

If you're looking for grape presses, pumps or reception equipment for your winery, please give us a call on 01404 892 100 and we will be happy to discuss your requirements.
