• Amazon 81 Series stainless steel filter housing for Mini filter bag
  • NB Bags not included (available separately)

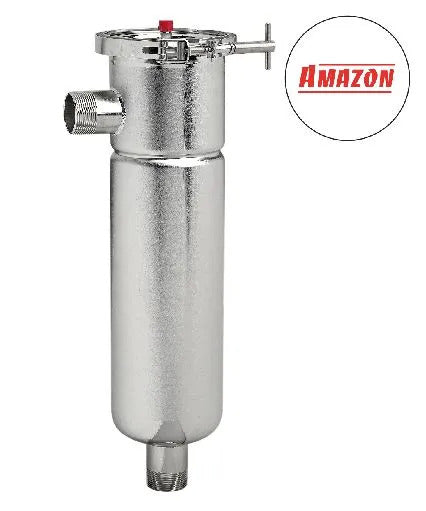

Amazon 81 Series stainless steel filter housing for Mini filter bag

95961Amazon 81 Series stainless steel filter housing for Mini filter bag

Live Stock Unavailable

In stock

Back Order

£555.00 ex. VAT

The 81 Series single stainless steel filter housing is manufactured by renowned Amazon Filtration and is designed to house the 4¼" DuoLine mini bags that we supply (available separately, see below.)

  • The ideal choice to replace conventional cast stainless steel strainers
  • Ideal for high debris removal of for infused products, such as gin or tea, or products with high particle load, when used with the DuoLine mini bag (available separately) featured below
  • Can also be used for pre-filter debris removal, when used with the DuoLine mini bag (available separately) filtered below
  • Side inlet and bottom outlet configuration facilitate easy access (only the basket to remove) and efficient cleaning
  • Lightweight top opening style
  • Quick release Vee Clamp closure for easy opening
  • Accepts the 4¼" DuoLine mini bag (available separately) featured below
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.


  • Integral vent to aid efficient filter changeout
  • Internally and externally electropolished as standard
  • PED & ATEX Complaint
  • Rated at 8.5 bar g liquid
  • Specification

  • Houses 1 x 4¼" top ring diameter DuoLine mini filter bag (available separately) listed below
  • Body & closure: 316L stainless steel body
  • Clamp: 304 stainless steel
  • Volume: 2.9 litres
  • Temperature range: -10?C / 110?C
  • Pressure range: Liquid 8.5 bar g
  • Inlet/outlet: I"BSPM
  • Vent: ¼ BSP
  • Seal: EPDM
  • Total dimensions: length 349
  • Distance from centre of vent to inlet end: 115mm
  • See product specification sheet in Downloads tab for full details
  • Amazon Filters

    Amazon Filters is Europe's leading manufacturer's of filtration solutions.

    Here are some of the reasons why we choose Amazon Filters: * Their reputation * They provide one the widest selection of filtration vessels, depth filters and pleated cartridges available today * Production, R&D, and design functions are all located at their UK head office in Camberley * Their filters are manufactured in clean room conditions using materials that meet Food Contact requirements * Amazon is accredited to ISO9001;2015 by one of the world's most prestigious and respected accreditation bodies, the British Standards Institute * Their cartridges are manufactured under strict control with batch number identification, giving full traceability on all components * All their products come with detailed Product Validation Guides and Technical Support documentation * Many of their filters can be regenerated using hot water or a variety of chemical treatments to ensure production costs are minimised

    Company Development:

    Amazon Filters was founded in 1985 by Mike Pizzey, an engineer with nearly 20 years previous filtration experience. The company now employs over 220 staff and is a renowned UK provider of optimum filtration solutions for liquid and gas process filtration, with subsidiaries in Germany and Poland. Amazon Filters design and manufacture filter housings and filter elements for liquid and gas process filtration.

    Amazon Filters Video

    Watch the Amazon Filters video here.

    What we offer

    In partnership with Amazon Filters, we can offer you: * Advice on the appropriate filter for you - taking product and desired outcomes into consideration * Advice on the appropriate fittings required to connect in-line * A single filter or the assembly of full cartridge filtration systems (see photo) by our team of multi-skilled Vigo engineers * Comprehensive 12 month warranty, backed up by our engineers * Full technical backup

    How can we help you?

    If you're looking for filtration solutions, please give us a call on 01404 892 100 and we will be happy to discuss your requirements.
