• Tenco Enolmatic single head standard vacuum filler
  • 96302 2

Tenco Enolmatic single head standard vacuum filler

RefNameStockPriceQty
96302Tenco Enolmatic single head standard vacuum filler

Live Stock Unavailable

In stock

Back Order

£225.00 ex. VAT

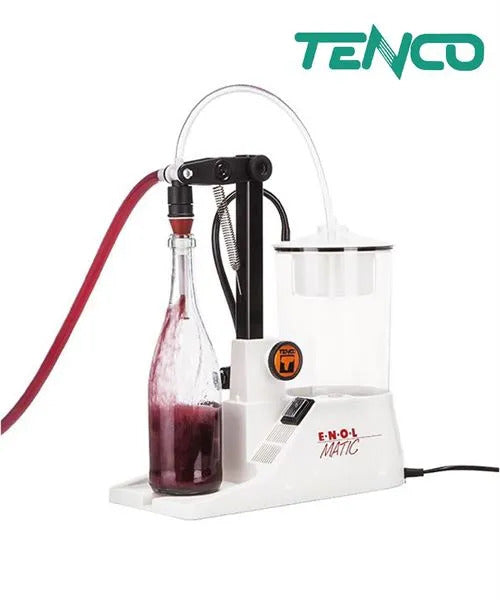

The Enolmatic is a single head benchtop vacuum filler manufactured by Tenco, for filling glass bottles with free running or slightly viscous still liquids, such as wine, spirits/liqueurs*, and oils. This standard version comes with a plastic filler nozzle.

  • Compact and easy to use
  • Uses a simple filling method - the vacuum pump removes air from the bottle and draws the product via vacuum from a container into the bottle, without the product coming into contact with the pump or any mechanical parts - filling stops when the correct fill level is reached
  • Fills up to 250 bottles per hour, depending on the viscosity of product
  • Able to draw product from a container up to 4 meters below the machine
  • Plastic filler nozzle
  • Accessories are available for various bottle and product types - see Accessories for Enolmatic (these are also listed in the Spares category in Catalogue - Refine by product 'Type', i.e., Fillers)

(*) NB If using for spirits, this model is only suitable for spirits with an ABV of up to 20%. The Interchangeable Stainless Steel Nozzle (part code 72539, available separately) is suitable for ABVs higher than 20%; alternatively, see the Enolmatic Single Head Vacuum Filler with Stainless Steel Nozzle (part code 96597).


NB If using for sugary liqueurs or products containing sugar, the Oil Bath Filter for Enolmatic accessory (available separately, please call 01404 892 100) must be used to protect the Enolmatic's vacuum pump from damage



Please see Closures for our range of caps and corks for glass bottles.

Please see the Fillers category in Catalogue for our full range of filling machines.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

Application

  • For free running or slightly viscous liquids, such as wine, liqueurs*, spirits (up to 20% ABV) and oils
  • Suitable for glass bottles within the following parameters:
    • internal neck diameter between 16 to 28mm
    • bottle height between 330 and 180mm
  • Maximum operating temperature is 60°C
  • A simple adjustment of the spout determines the level of the liquid inside the bottle
  • Operation:
    • The machine automatically draws the liquid from the container and stops when the liquid reaches the level previously set
    • You can also adjust: the spout shaft, to adapt it to bottles of different heights; the filling speed, i.e., when bottling slightly viscous liquids

(*) NB If using for sugary liqueurs or products containing sugar, the Oil Bath Filter for Enolmatic accessory (available separately, please call 01404 892 100) must be used to protect the Enolmatic's vacuum pump from damage

Specification

  • One filling nozzle (plastic)
  • Silicone gaskets
  • Polycarbonate vessel
  • Maximum fill height:
    • 45mm from top of bottle (around 35mm from top of bottle if an additional conical seal is used - NB only one conical seal is provided with this filler - extra seals can be ordered)
    • Around 22mm from top of bottle with Krystal Kit (part code 96311, available separately)
  • Power supply: single phase, 220V, 50Hz
  • Dimensions (w x d x h): 200 x 400 x 400 mm
  • Weight: 4kg



YouTube

Tenco

Tenco specialise in machinery for filling semi-liquid and liquid products for beverage, food & pharmaceutical industries. We have supplied Tenco vacuum fillers for many years and they remain hugely popular for filling both liquid & semi-viscous products. We also supply Tenco volumetric fillers for filling thick products.

Here are some of the reasons why we choose Tenco:

  • Tenco are innovators: Founder Giuseppe Tenco developed a table-top filler originally for wine manufactured with robust materials, which was easy to use and clean, which he called the 'Enolmatic'; the Enolmatic soon became the filling machine which made the name Tenco known all over the world, swiftly followed by the Enolmaster. The company expanded and began developing and manufacturing filling technologies for a very wide range of liquid, semi-viscous, and viscous products, including spirits, liqueurs, syrups, vinegar, fruit juice, oils, chocolate, jam, sauces, honey, and oils.
  • Tenco machines are designed for small and medium sized producers and are ideal for pilot product development
  • Tenco's production values remain unchanged - intelligent technology and the best materials

The range

We supply the range of Tenco vacuum fillers and Tenco volumetric fillers, all of which are semi-automatic.

Blog

Read about one particular vacuum filler in the Tenco range - the Enolmaster - in our Small scale craft bottling blog.

Tenco Video

Watch the Tenco video here

What we offer...

We have supplied Tenco fillers since 1999. We can offer you:

  • Advice on the appropriate filler for you - taking budget, desired throughput, labour, etc. into consideration
  • Comprehensive 12 month warranty, backed up by our team of Vigo engineers
  • Maintenance & full technical backup and support from our mobile engineers

Case Studies

The Case Study below represents only one of the hundreds of Tenco fillers we have supplied over the years to a variety of different drink producers:

How can we help you?

If you're looking to increase your filling capability, or you are a new start-up, please call us on 01404 892100 and we will be happy to discuss your requirements.
