In bottle carbonators

Application

Bottle Parameters:

• Glass bottles (max pressure 3 Bar)
• 200ml to 1 litre capacity
• Minimum height: 180mm
• Maximum height: 380mm

NB This product is not suitable for beer

Steps:

• Fill bottles with chilled product
• Clamp bottle on platform and close door
• Rotate apparatus – liquid product splashes into sphere saturated with CO2
• Rotate apparatus again, carbonated product returns to bottle
• Remove bottle and cap

Specification

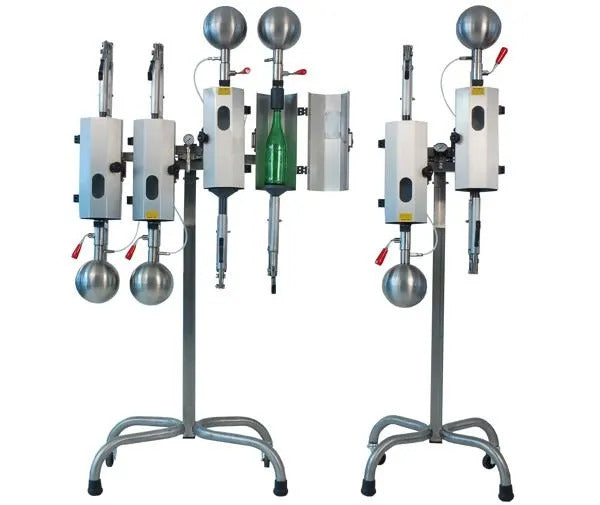

2 Head in-bottle carbonator

• Capacity: up to 120 bottles per hour, depending on operator & product
• Long handles & safety device to prevent doors opening while machine is running
• Maximum bottle pressure: 3 Bar
• Gas Connection: 6mm push fit fitting mounted on the rear
• Dimensions: Width 450 x Depth 500 x Height 1760 mm

4 Head in-bottle carbonator

• Capacity: up to 240 bottles per hour, depending on operator & product
• Long handles & safety device to prevent doors opening while machine is running
• Maximum bottle pressure: 3 Bar
• Gas Connection: 6mm push fit fitting mounted on the rear
• Dimensions: Width 840 x Depth 530 x Height 1760 mm
