Speidel 500 litre Braumeister brewing system

The Speidel Braumeister is a compact, self-contained brewing system which allows you to make any type of beer – English ales, lagers, ‘Blonde’ beers, wheat beers – anything! It has fully automatic, programmable temperature and time functions, and an integral pump. The accurate, automatic controls give you good, consistent results, and reliable replication. The control of this 10 litre model features a colour screen, and it can store up to 10 recipes.

The Braumeister combines a hot liquor tank, mash tun and copper in one compact vessel. All models contain powerful elements for fast heating, and a pump.

'The freedom of choice and total control of the entire process is what puts this system above the rest. With the brewer able to select malts and adjuncts, mashing profile, boiling and hopping regimes, as well as downstream fermentation, this system allows the brewer to pretty much brew any beer style (and create their own!).' Brewer & Distiller International, April 2015

'The precise nature of the system and ease of repeatability mean that such a system is perfect for small and large breweries as well as home brewers. Many smaller breweries use several 50L systems as their brew house systems, while larger breweries use the Braumeister to create and adjust new recipes before scaling up. A 2hL and 5hL system ... are available for larger-scale operations.'Brewer & Distiller International, March 2015

Installed & commissionined by our Engineers.

Please call us on 01404 892 100 to discuss these larger Braumeisters.

See the 'Speidel' tab for our customer Case Studies.



See the Braumeisters category in Catalogue for our full range of Braumeister brewing equipment & accessories; for brewing on a much larger scale, see Brewhouses for our range of ABE Brewhouses.

See Tanks for our range of fermentaters and Tanks.

Features

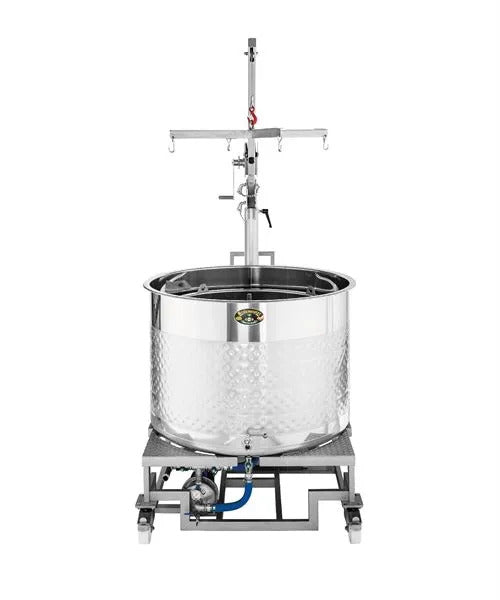

The 500 litre model is ideal for micro breweries, especially if space is limited. This model is supplied with a lifting crane to lift the malt cylinder, and an external cooling jacket which can be connected to the cold water supply in order to cool the wort. Stainless steel fermentation tanks are available, with heating/cooling jackets to control fermentation and storage conditions, using temperature control systems.

Available in 200 litre and 500 litre capacities for micro-breweries, as well as 20 litre and 50 litre version for pilot brews.

  • Extremely simple to use – takes the mystery out of brewing!
  • Use to make any type of beer/ale
  • Hot liquor tank, mash tun & copper in one compact vessel!
  • Auto programmable temperature & time functions
  • Reliable replication of results

The Braumeister can be programmed by the brewer according to the recipe for the beer being brewed, with the following programmable phases:

  1. Mashing the wort
  2. Protein phase
  3. Maltose phase
  4. Saccharification phase
  5. Hop boiling

At each stage the precise temperature and time can be set and the Braumeister gives appropriate prompts to the user at each stage. After hop boiling the wort can be rapidly cooled using the cooling jacket connected to either cold water or a chiller unit. The beer then needs to be transferred to a tank for fermentation.



YouTube

The Braumeister Range:

Downloads

    Speidel

    Speidel Tank-und Behälterbau GmbH are globally renowned tank manufacturers. They have been manufacturing high quality beverage tanks for over 100 years. Speidel tanks are used by successful wineries and drink producers around the world and we are proud to be their UK agents.Here are some of the reasons why we choose Speidel for stainless steel beverage tanks:

    Download our Speidel Tank Features Flier here for an overview.

    The Stainless Steel: Speidel tanks are manufactured from high specification Outukumpu stainless steel. Outukumpu are global leaders of stainless steel production, were founded in 1910 and acquired ThyssenKrupp in 2012. The steel is manufactured to stringent German standards and is generally thicker than that found on cheaper brands of tank.

    Easy Clean Features:

    Speidel's innovative in-house design and in-house high-tech production methods result in tanks which are incredibly easy to clean:

    • Mirror finish (certified grade llld 2R) for chemical free cleaning, reducing labour costs, chemical costs and damage to the environment
    • Seamless moulding of panels, door opening and door, reducing welds, minimising dirt traps and tartrate crystal formation, while maintaining great strength
    • Continuous, smooth welds, minimising dirt traps and tartrate crystal formation

    Guarantee: Speidel non-pressure stainless steel tanks up to and including 2000 mm diameter come under Speidel's 25 year tank Guarantee (NB Terms & Conditions apply).

    Watch the Speidel Tank Advantages video here.

    Download the Speidel 'Your Speidel Advantages' flier here.

    Blogs - more info: Read more on our blogs Speidel Customised Tanks(manufactured to order) and Speidel Configuration Tanks(Speidel's most popular tanks), both of which include links to the Speidel catalogues. Although Speidel tanks are suitable for multiple beverage types including wine, cider, beer, spirits and soft drinks, you may also find our 'Just a tank?' blog useful which focuses on Speidel's quality features and specific tanks for a winery context. We keep a range of the smaller scale tanks in stock here at Vigo(stock tanks) and these are available to order online on this website, in amongst the tanks listed in the Tanks category; we also try and keep a limited number of FS-MO fixed capacity tanks in stock, which you will need to call us to enquire about. Please note, the Speidel range is vast and for those new to Speidel tanks, it can be a challenge to determine which tank is suitable for a particular application - if you need advice please do not hesitate to call us on 01404 892 100 - we are more than happy to help you.

    Made in Germany: As Speidel state,'for us "Made in Germany" is not just an empty phrase, but a lived principle'. They manufacture their tanks exclusively at their high-tech factory in Ofterdingen, Swabia/Germany and their tanks are designed to to last a lifetime when treated correctly. They use certified high specification stainless steel (as above), impeccable production methods (as above) and have a highly trained production crew.

    Innovation: Speidel won the Vinitech Citation Innovation award for the design of their red wine mash plunger system, which ensures gentle processing, high colour and aroma extraction, low sludge content, and enables preset programming of immersion and interval times.

    Sustainability: Speidel generate 25% of their energy needs on-site via their solar photovoltaic system, which enables them to avoid approximately 270 tons of CO₂ annually. The remaining 75% is powered by 100% CO₂-free green electricity. As a result, the production of a Speidel tank is net zero CO₂. Also, Outokumpu are leading the steel industry with the world's most sustainable stainless steel. You can read the full details about Speidel and Outokumpu's commitment to Sustainability in our our 'Just a tank?' blog.

    What we offer...

    As Speidel's exclusive UK agents, we have been supplying Speidel tanks since 1996.

    • We give you qualified advice based on your specific requirements, helping you to choose the right tank for your application
    • We will give you a clear specification with a confirmed price
    • We ensure you are supplied with the correct tank fittings/accessories for your application, enabling you to start using your tank without delay
    • For bespoke tanks you will be supplied with tank drawings prior to manufacture for your peace of mind
    • If you need to kit out a complete cellar with tanks, in conjunction with Speidel we can provide cellar layout diagrams
    • If temperature control/chilling of your product is required, we offer and install the Quantor (Kreyer) range of Temperature Control & Chilling equipment, which works in conjunction with Speidel heating/cooling jackets, for accurate control and management of individual tank temperatures
    • We control your order from placement to the moment your tanks arrive on your site. so you don’t have to worry about sourcing freight and associated insurance
    • We can give advice on unloading your tanks from the lorry and subsequent handling
    • We are here for you throughout the lifespan of your tanks should you have any questions or need any advice

    Case Studies

    The Case Studies below represent a small sample of the Speidel tanks we have supplied over the years, and a small sample of those on our website.
